Product Name

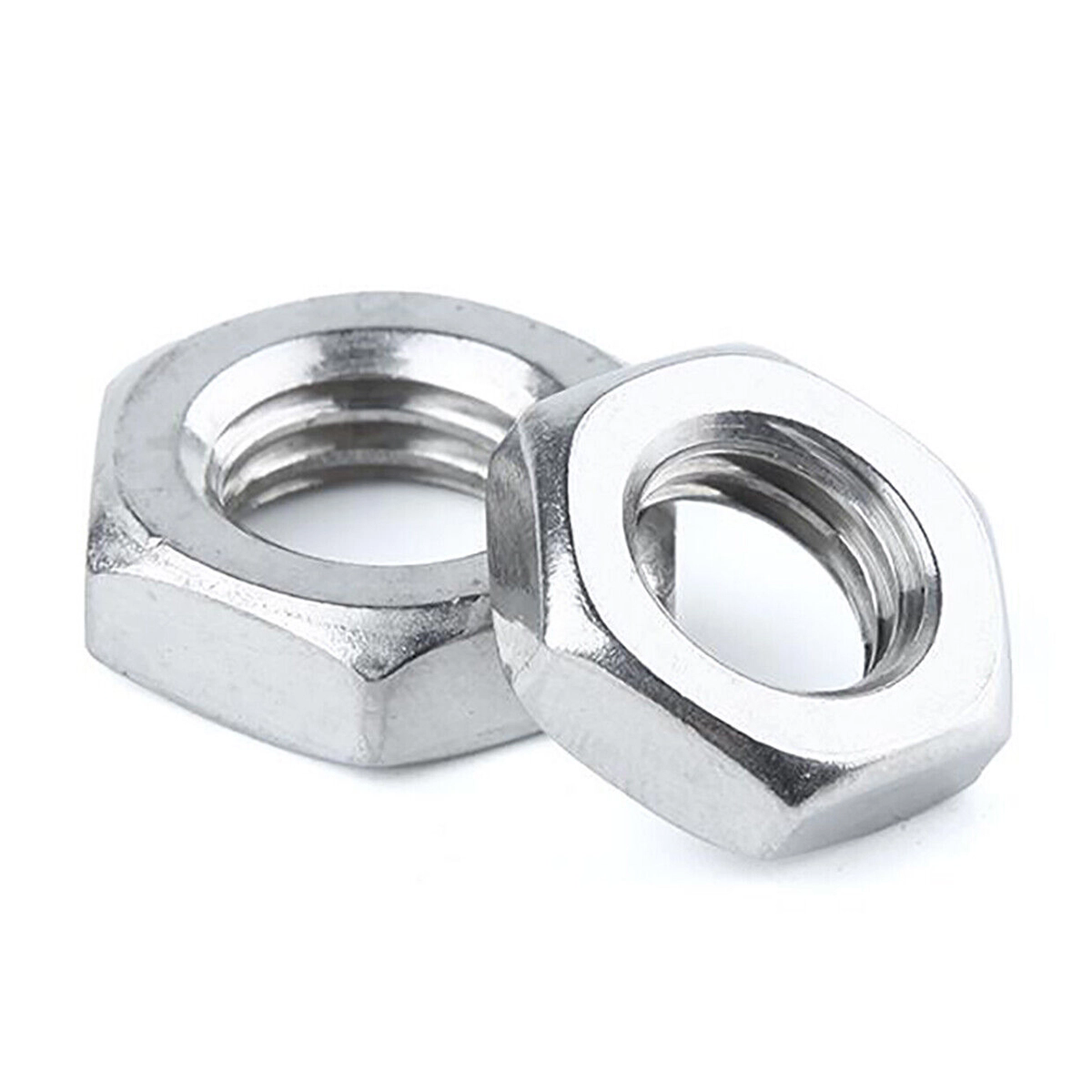

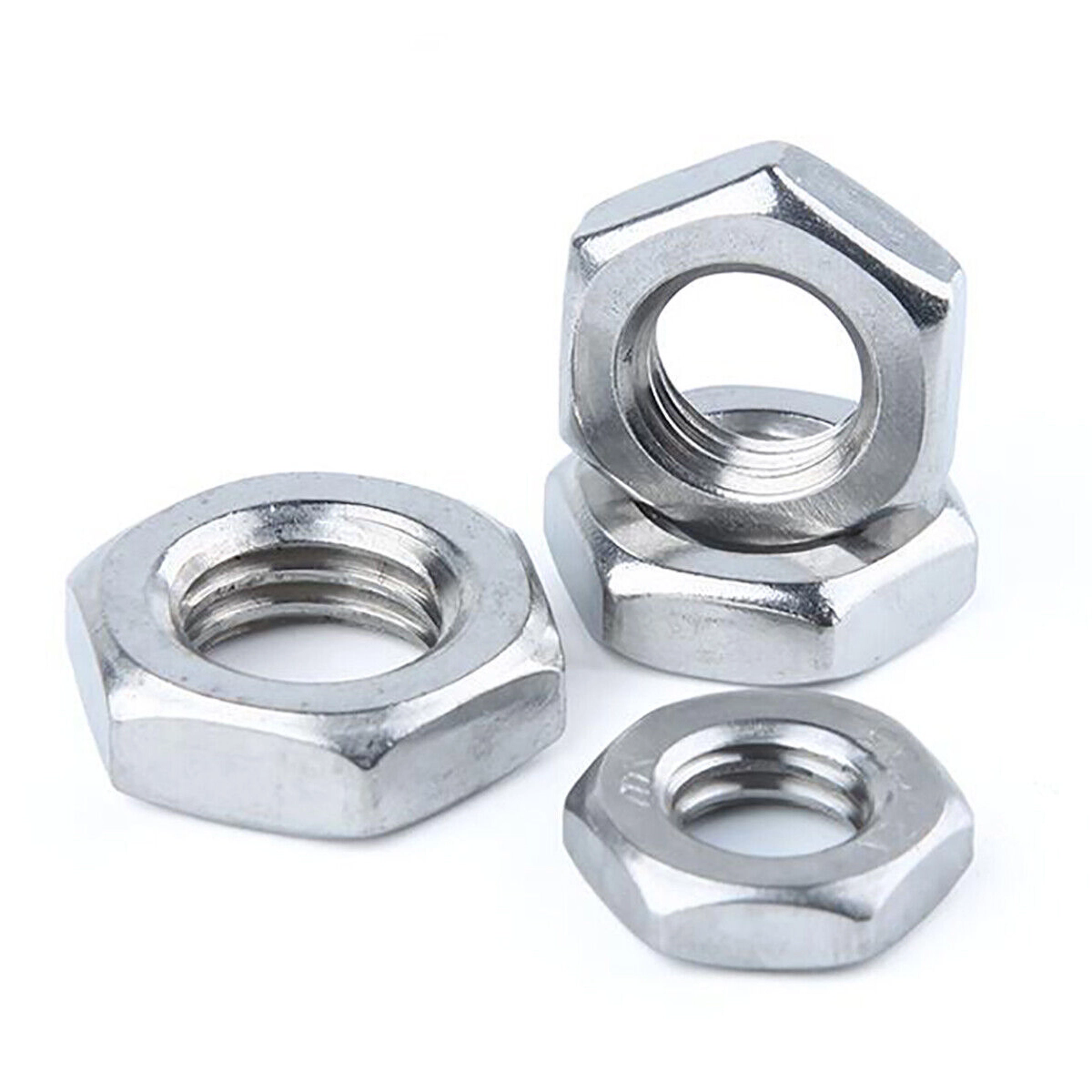

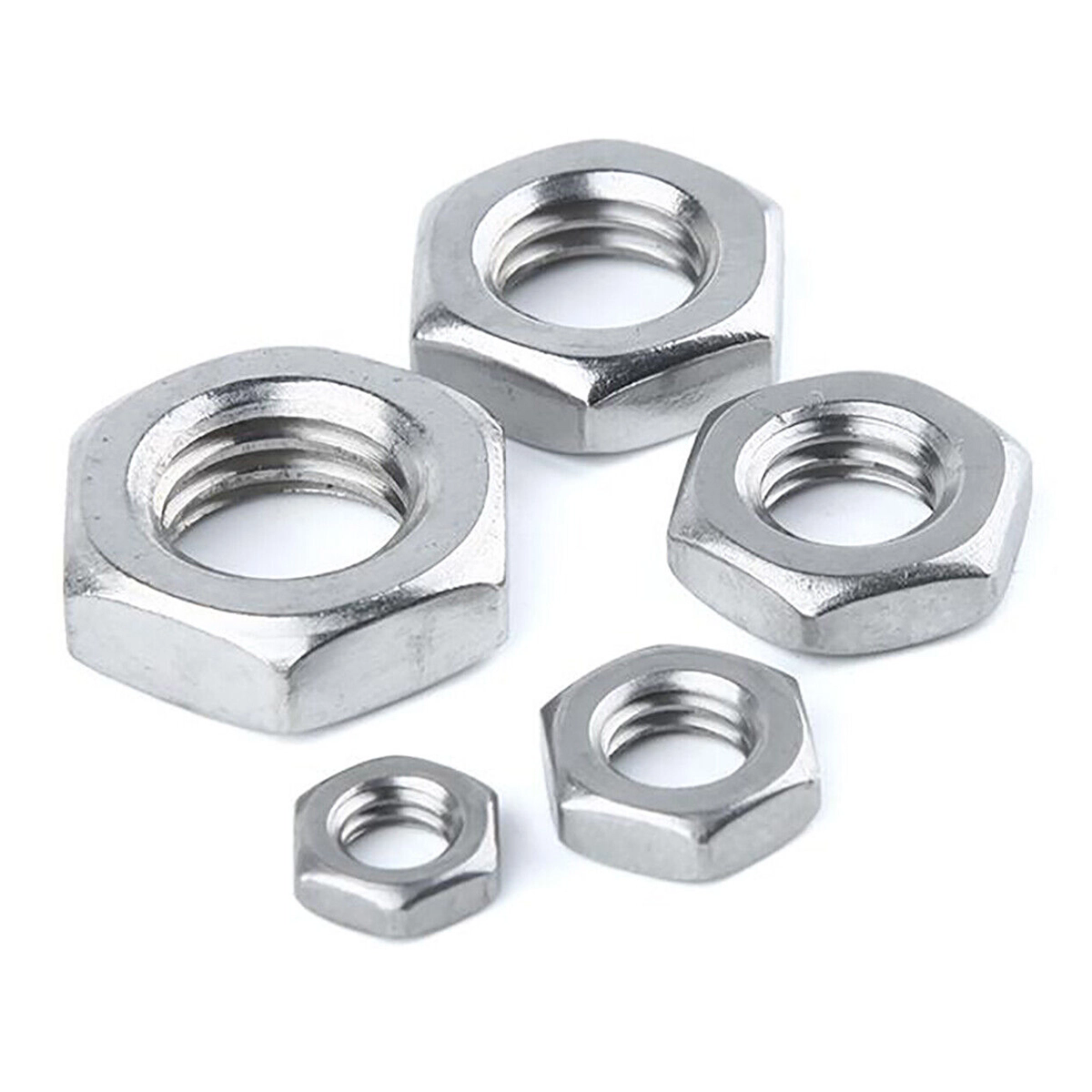

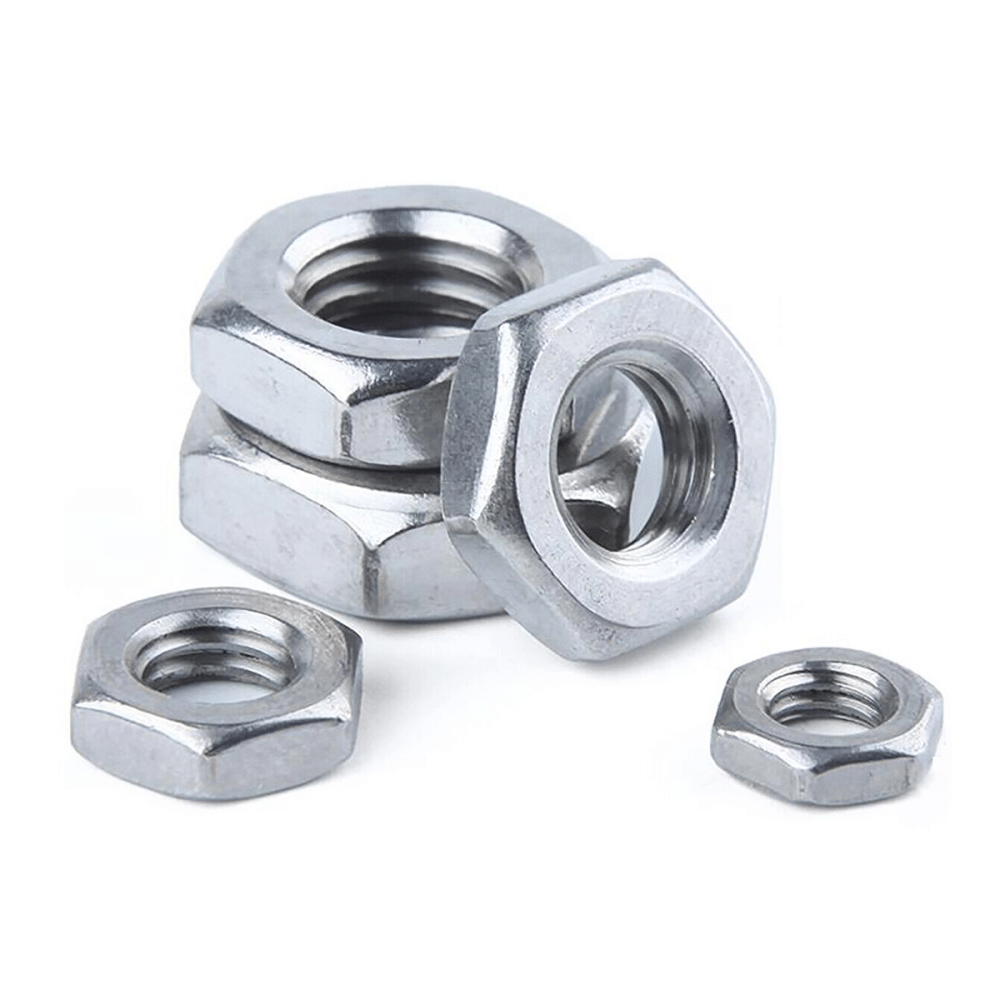

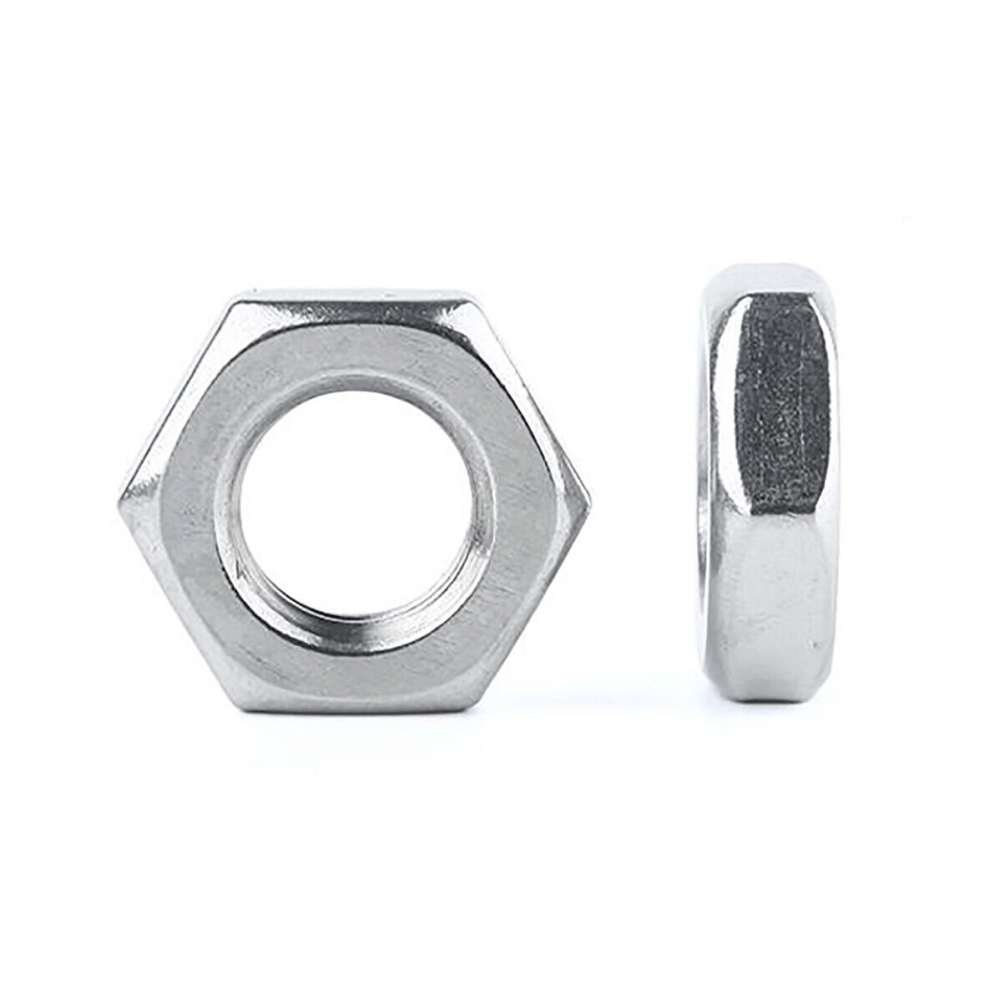

DIN 936 Hexagon Thin Nuts Jam Nut
Details Information
Introduction
Hex thin nut is a type of nut characterized by its reduced height or thickness compared to a standard hex nut，which allows for applications with limited vertical space or where a lower profile nut is desired.
Features
They are thin hex nuts about half as thick as a regular hex nut. They are often used as lock nuts, where they are threaded up against a standard nut locking it in place or in any circumstance where a standard nut is too thick for an application, a hex jam nut can be a very useful alternative.
Applications
Jam nuts are used with finished or heavy hex nuts to keep them from loosening. The jam nut is placed against the work surface and then the hex nut or heavy hex nut is applied.

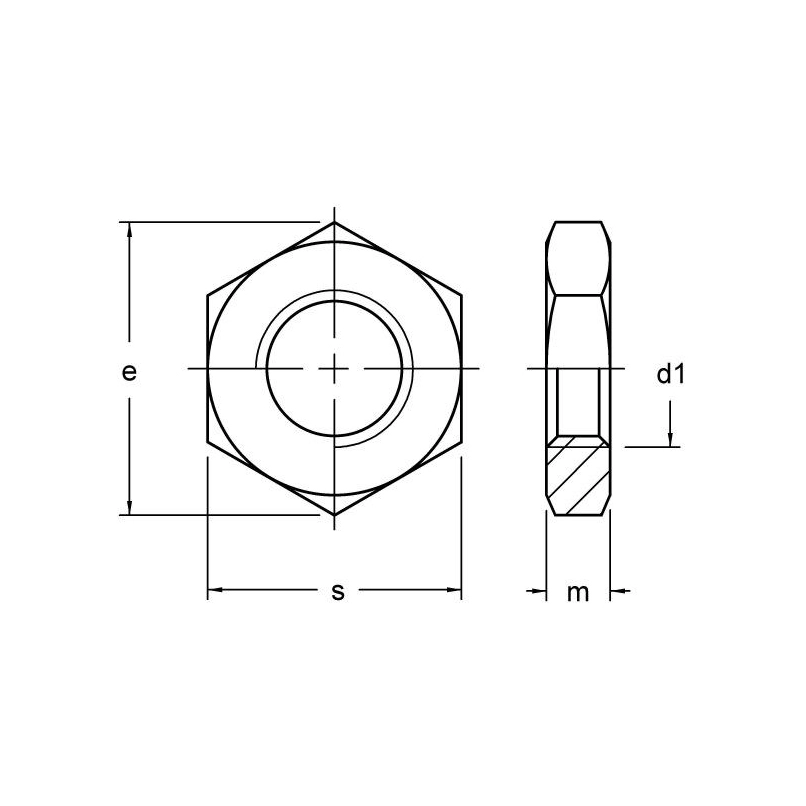

Parameters
Size | P | da | dw | e | m | m´ | s | |||
min. | max | min. | min. | min. | max. | min. | min. | max. | ||
M8 | 1.25 | 8.00 | 8.75 | 11.30 | 14.38 | 4.70 | 5.00 | 3.80 | 12.73 | 13.00 |
M10 | 1.00 | 10.00 | 10.80 | 15.30 | 18.90 | 5.70 | 6.00 | 4.60 | 16.73 | 17.00 |
M12 | 1.75 | 12.00 | 13.00 | 17.20 | 21.10 | 6.64 | 7.00 | 5.30 | 18.67 | 19.00 |
M14 | 2.00 | 14.00 | 15.10 | 20.20 | 24.49 | 7.42 | 8.00 | 5.90 | 21.67 | 22.00 |
M16 | 2.00 | 16.00 | 17.30 | 22.20 | 26.75 | 7.42 | 8.00 | 5.90 | 23.67 | 24.00 |
M18 | 2.50 | 18.00 | 19.50 | 25.30 | 29.56 | 8.42 | 9.00 | 6.70 | 26.16 | 27.00 |
M20 | 2.50 | 20.00 | 21.60 | 28.20 | 32.95 | 8.10 | 9.00 | 6.50 | 29.16 | 30.00 |
M22 | 2.50 | 22.00 | 23.70 | 29.50 | 35.03 | 9.10 | 10.00 | 7.30 | 31.00 | 32.00 |
M24 | 3.00 | 24.00 | 25.90 | 33.20 | 39.55 | 9.10 | 10.00 | 7.30 | 35.00 | 36.00 |
M27 | 3.00 | 27.00 | 29.10 | 38.00 | 45.20 | 10.90 | 12.00 | 8.70 | 40.00 | 41.00 |
M30 | 3.50 | 30.00 | 32.40 | 42.70 | 50.85 | 10.90 | 12.00 | 8.70 | 45.00 | 46.00 |
M33 | 3.50 | 33.00 | 35.60 | 46.60 | 55.37 | 12.90 | 14.00 | 10.30 | 49.00 | 50.00 |
M36 | 4.00 | 36.00 | 38.90 | 51.10 | 60.79 | 12.90 | 14.00 | 10.30 | 53.80 | 55.00 |
M39 | 4.00 | 39.00 | 42.10 | 55.90 | 66.44 | 14.90 | 16.00 | 11.90 | 58.80 | 60.00 |
M42 | 4.50 | 42.00 | 45.40 | 60.60 | 71.30 | 14.90 | 16.00 | 11.90 | 63.10 | 65.00 |
M45 | 4.50 | 45.00 | 48.60 | 64.70 | 76.95 | 16.90 | 18.00 | 13.50 | 68.10 | 70.00 |
M48 | 5.00 | 48.00 | 51.80 | 69.40 | 82.60 | 16.90 | 18.00 | 13.50 | 73.10 | 75.00 |
M52 | 5.00 | 52.00 | 56.20 | 74.20 | 88.25 | 18.70 | 20.00 | 15.00 | 78.10 | 80.00 |
