wholesale Cross Recessed Phillips Flat Countersunk Head Self Drilling Screws Zinc Plated Carbon Steel Sds TEK Sheet Metal Screws

Self-drilling screws are a type of screw used in a variety of fastening and fixing applications. Typically made from stainless steel, self-drilling screws are characterised by their drill-shaped point. This point enables the screws to drill into materials without the need for pre-drilled pilot holes, resulting in a more efficient fastening process.

Available in a range of sizes, lengths, and thicknesses, self-drilling screws are handy and versatile. They are sometimes also known as Tek screws. Tek was originally a brand name for a popular manufacturer of these screws, but over time, the name Tek screw has since become synonymous with this type of fastener.

Self-drilling screws can cut through a variety of materials including wood and metal such as softer steel. As a result of this, self-drilling screws are also ideal for more heavy-duty applications and industries, especially when compared to alternatives like self-tapping screws.


Product Description

Product Name

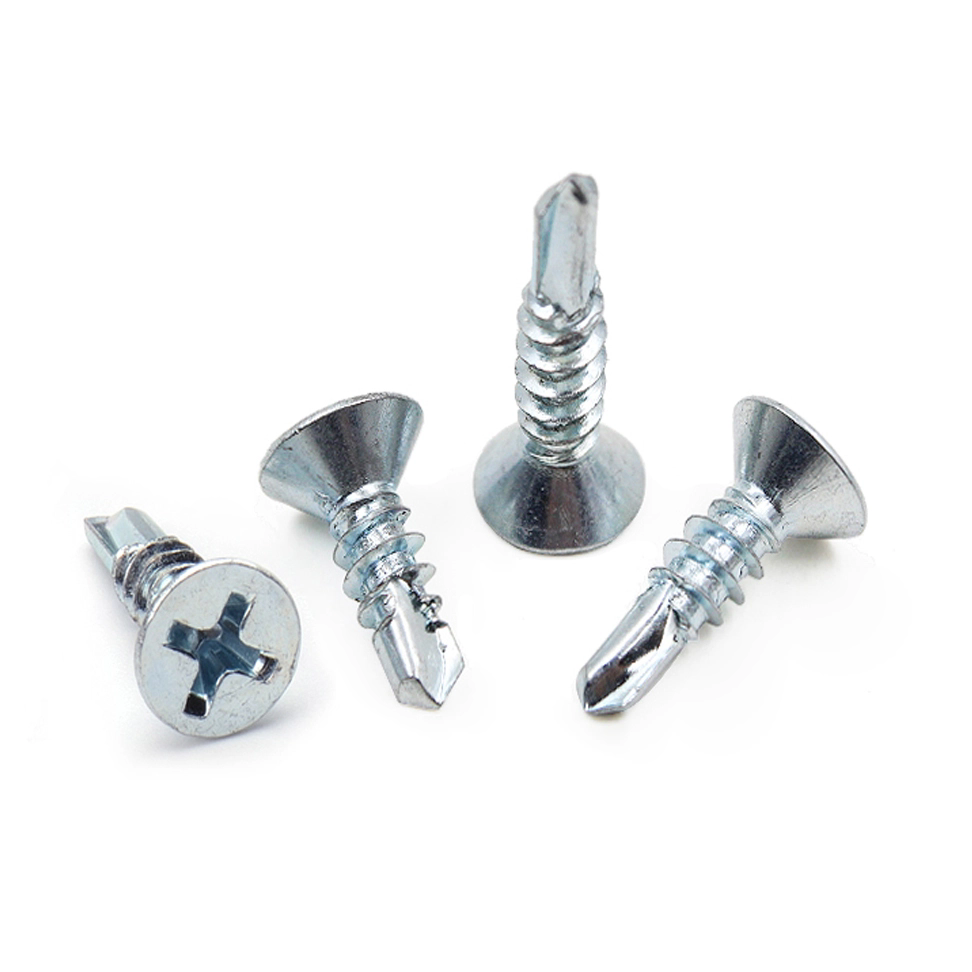

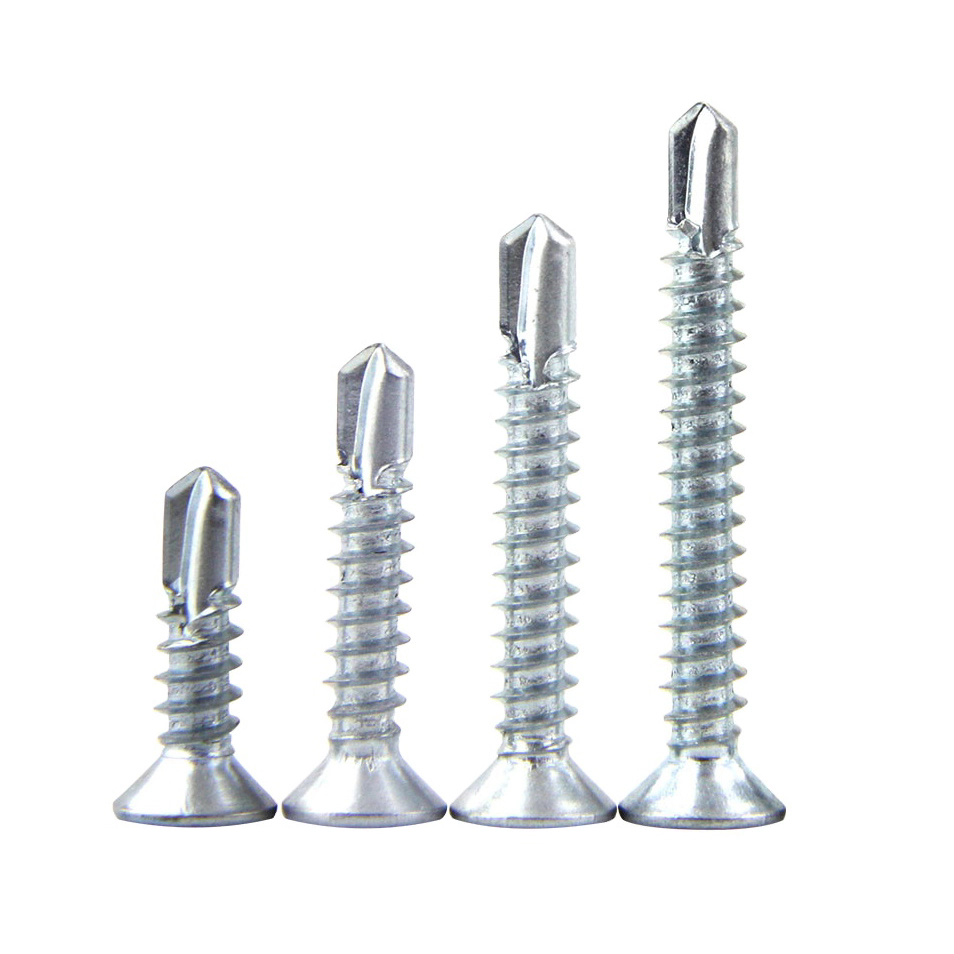

Flat phillips self drilling screw



Details Information

Introduction

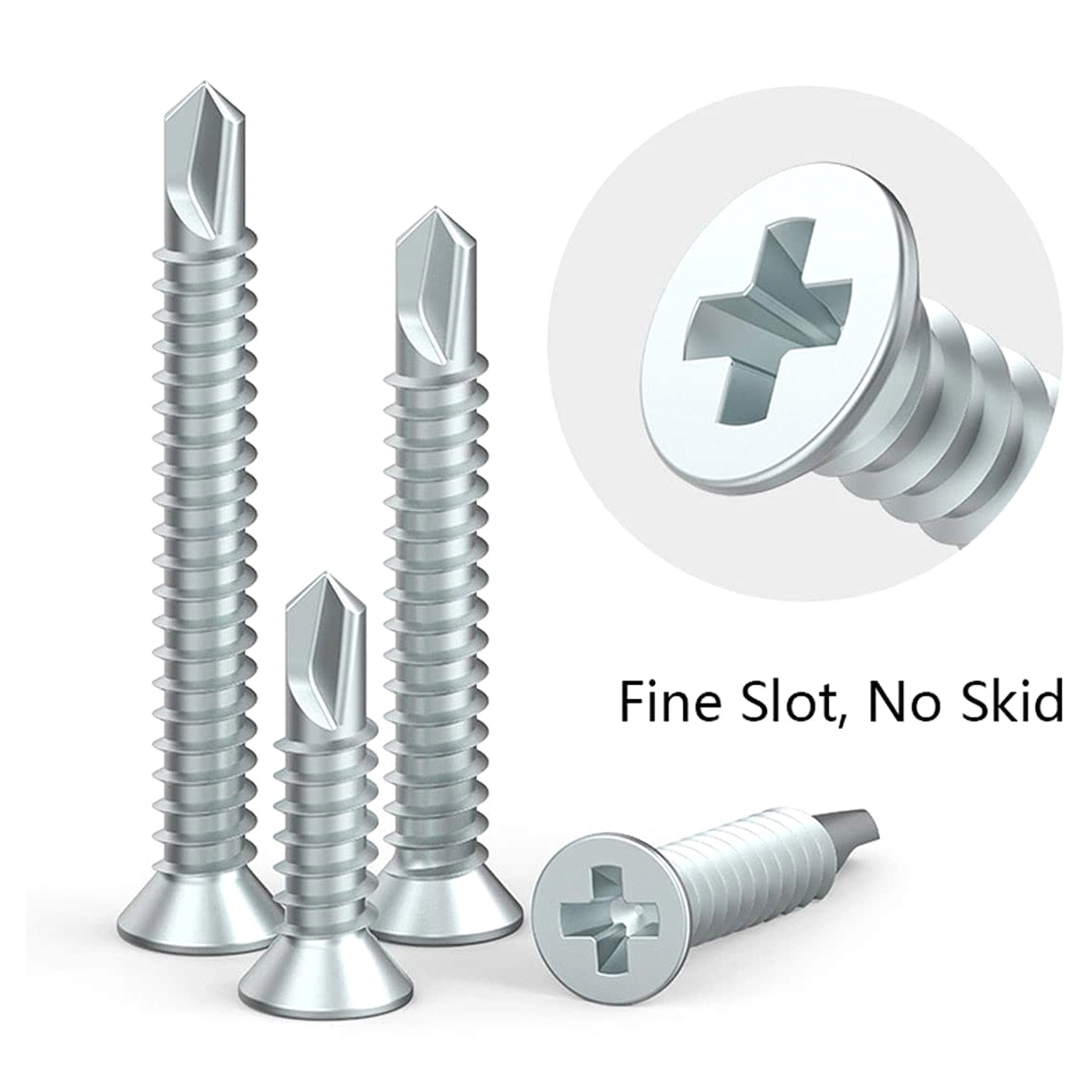

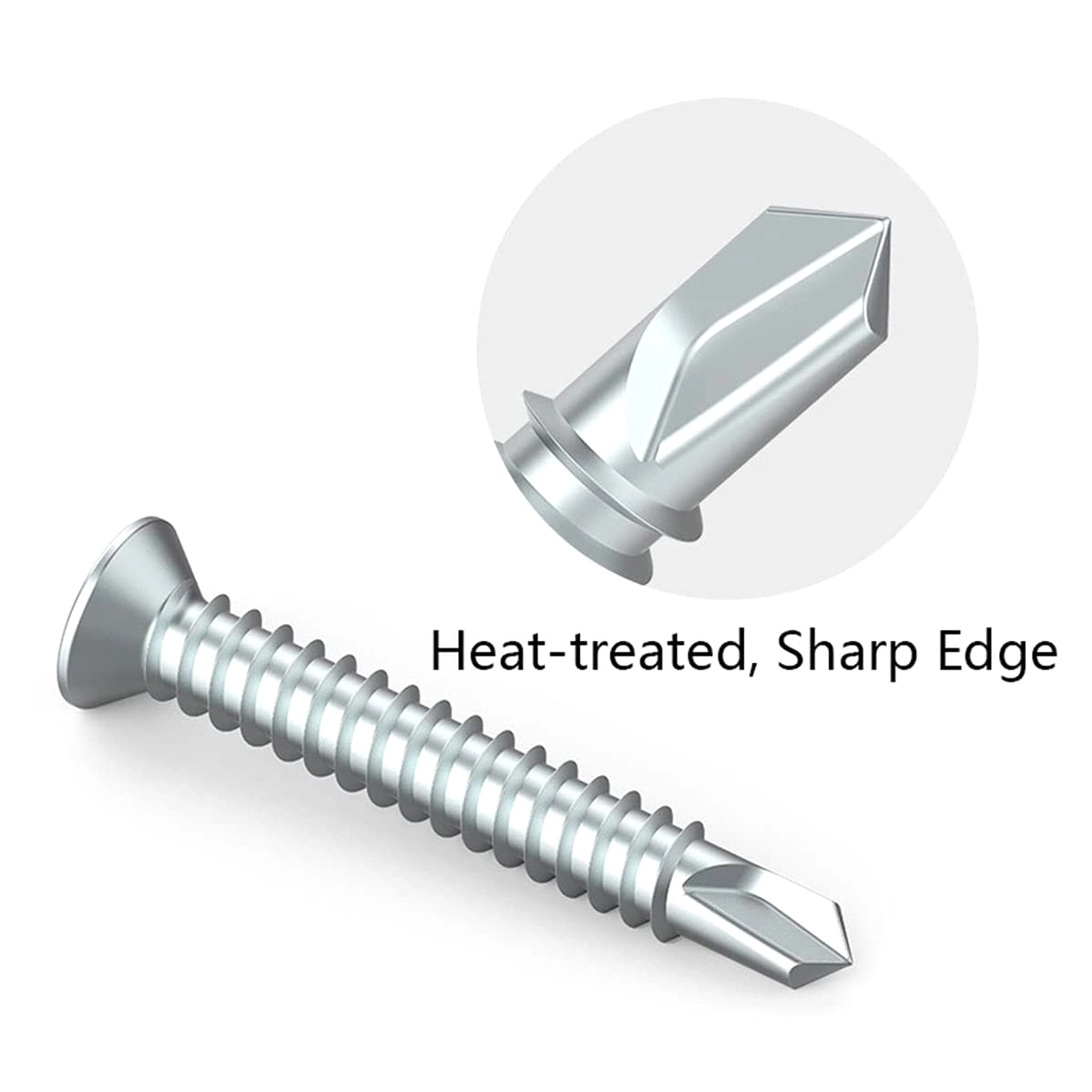

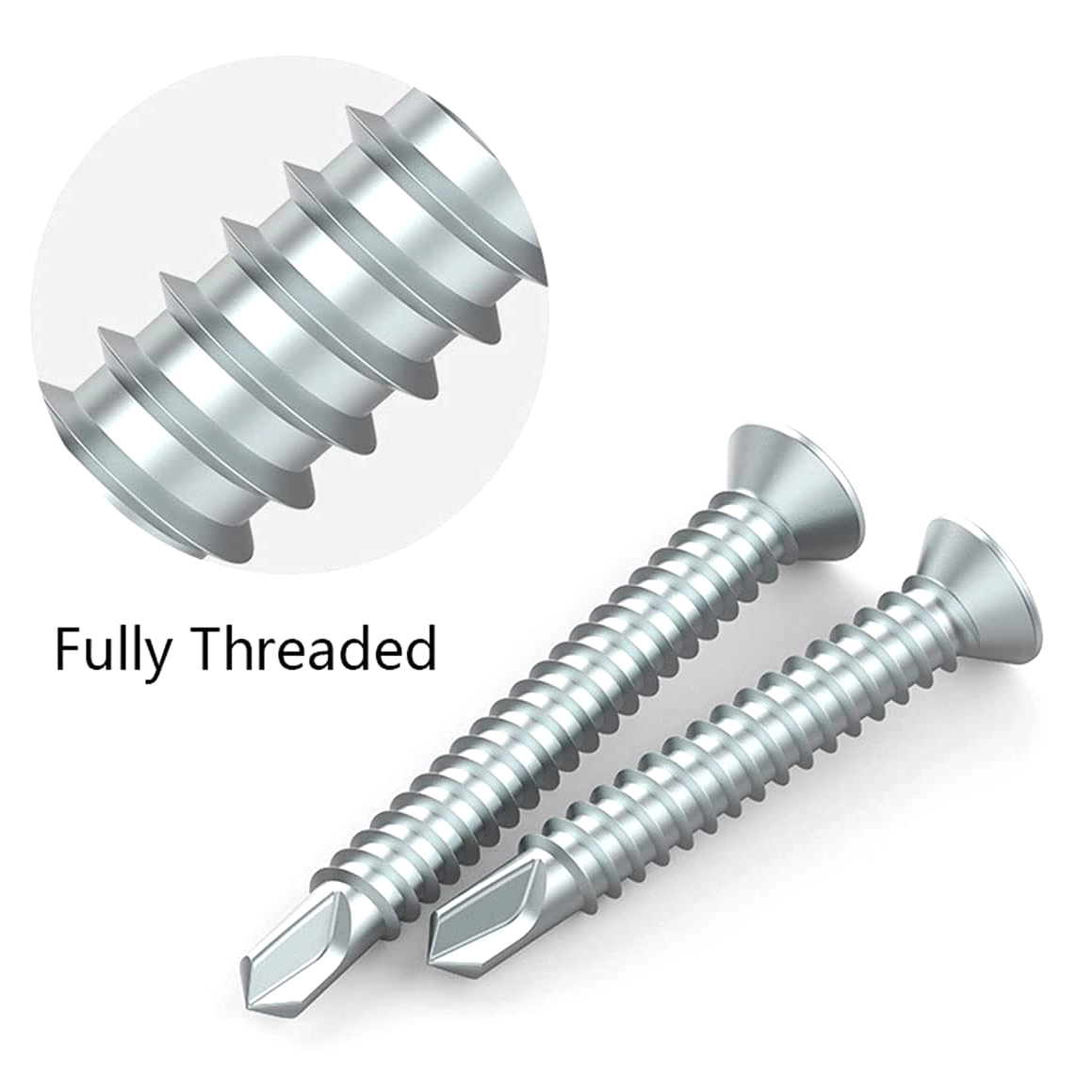

self-drilling screws are a high quality screw designed for metal-to-metal fastening jobs. The self-drilling point drills through metal easily and eliminates the need for any pre-drilling. The flat head is designed for countersunk fixtures and applications where the screw head needs to sit flush once installed. The zinc plating is recommended for installations in dry interior environments only.

 Features

These Self-Drilling Screws are designed to be used in applications where metal to metal connections are needed to be made.This self-drilling fastener is made of a zinc plated steel. The zinc plating is applied electrically to the fastener providing a protective barrier that helps prevent oxidation.


 Applications

They are used for metal to metal fastening and are used in medium gauge metal to metal framing.

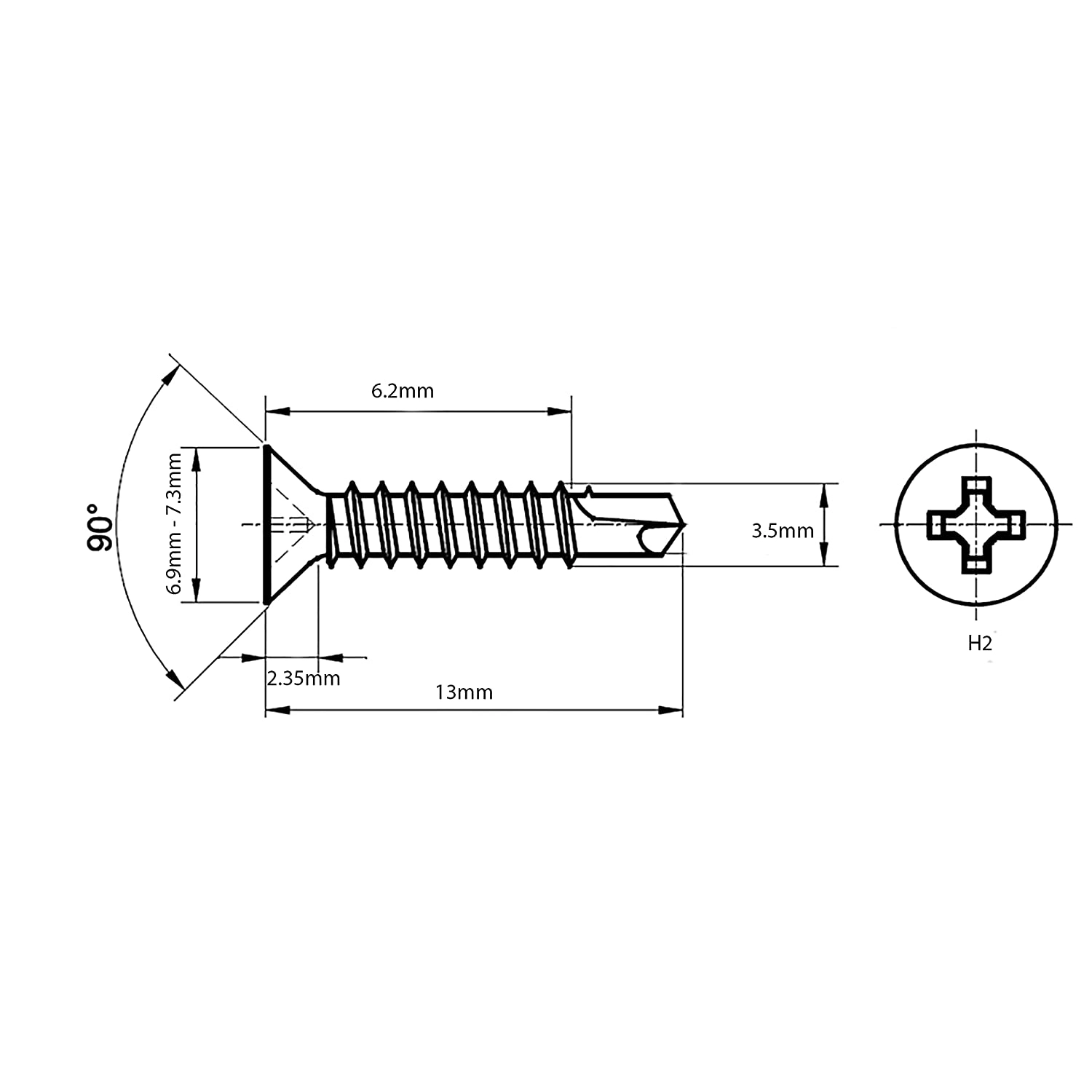

 Parameters



Diameter Size (d)#6 (M3.5)#8 (M4.2)#10 (M4.8)#12 (M5.5)#14 (M6.3)
Head Diameter6.8MM8.1MM9.5MM10.8MM12.4MM
Head Height2.1MM2.5MM3.0MM3.4MM3.8MM
Length
  • 3/8

  • 1/2

  • 5/8

  • 3/4

  • 1"

  • 1/2

  • 5/8

  • 3/4

  • 1"

  • 1-1/4

  • 1-1/2

  • 1-3/4

  • 2"

  • 2-1/2

  • 5/8

  • 3/4

  • 1"

  • 1-1/2

  • 1-3/4

  • 2"

  • 2-1/2

  • 3/4

  • 1"

  • 1-1/4

  • 1-1/2

  • 1-3/4

  • 2"

  • 2-1/2

  • 7/8

  • 1-1/2

  • 2"

  • 2-1/2
