Product Name

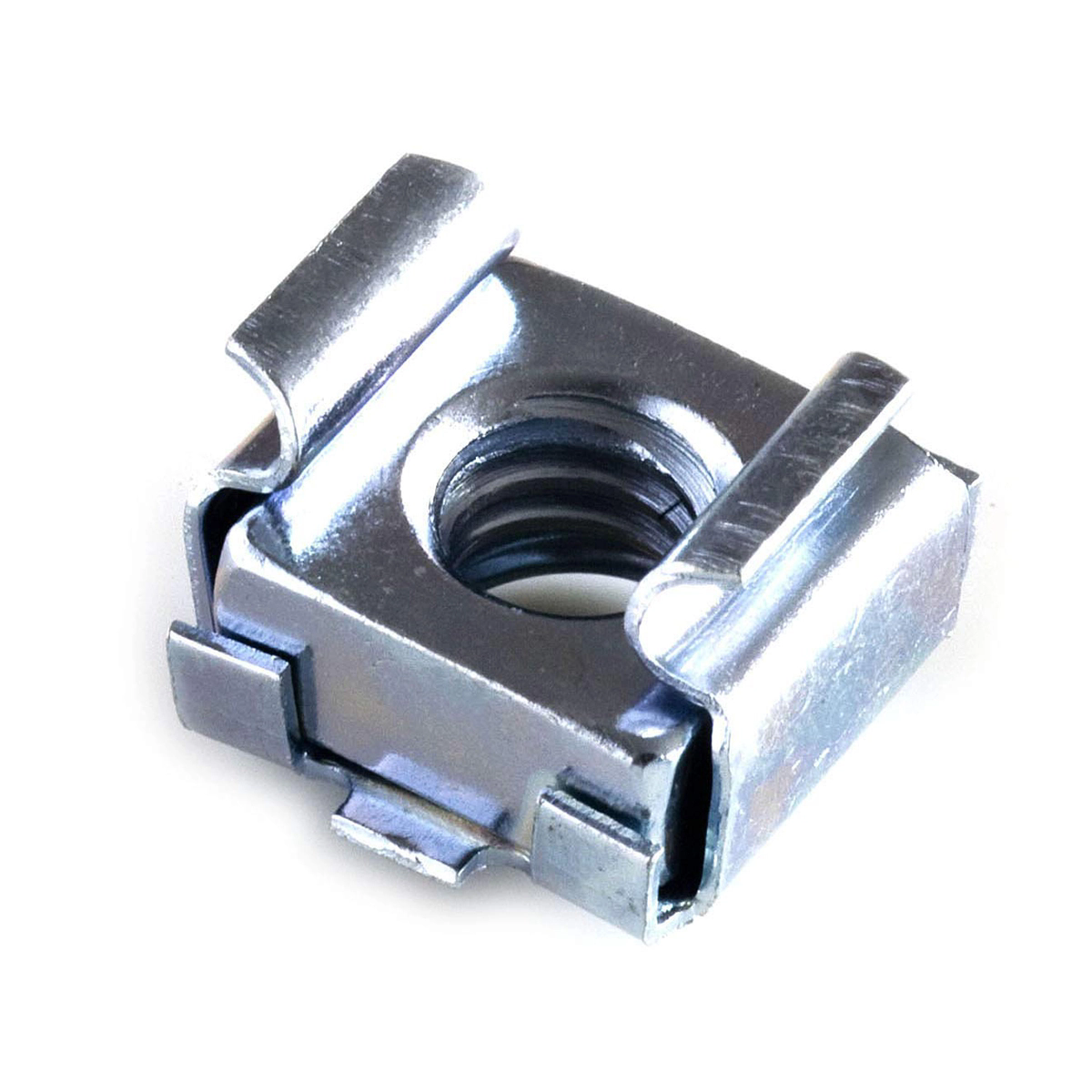

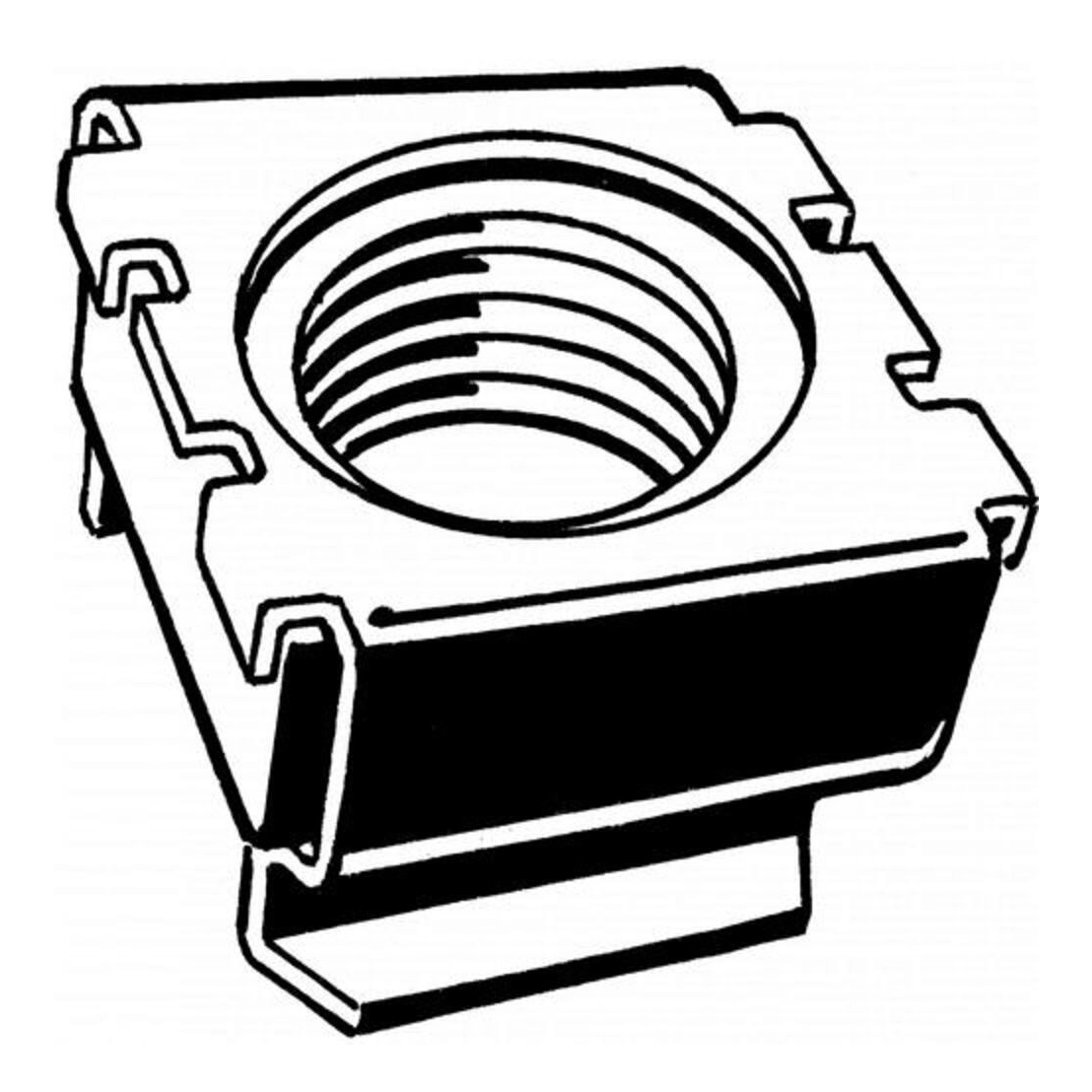

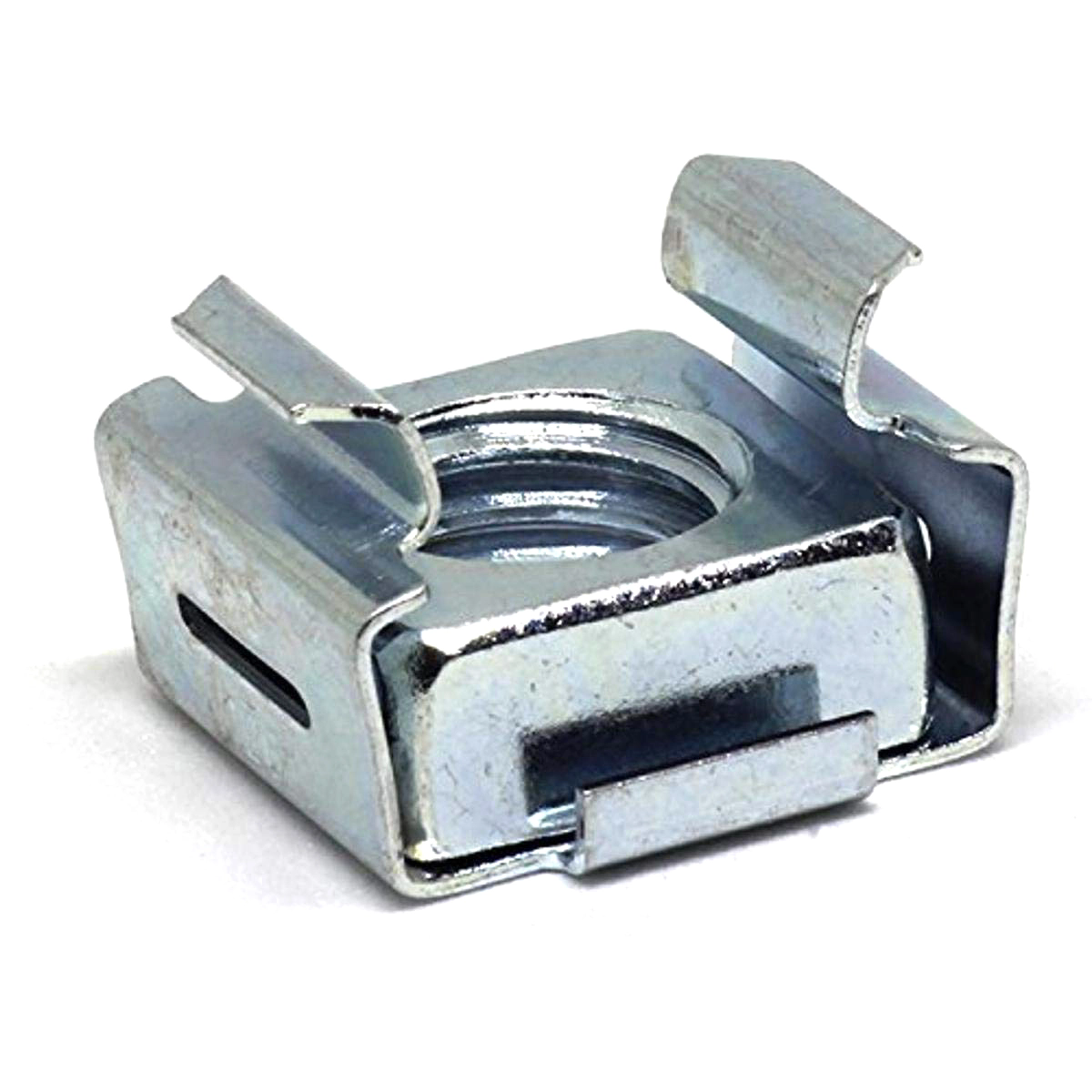

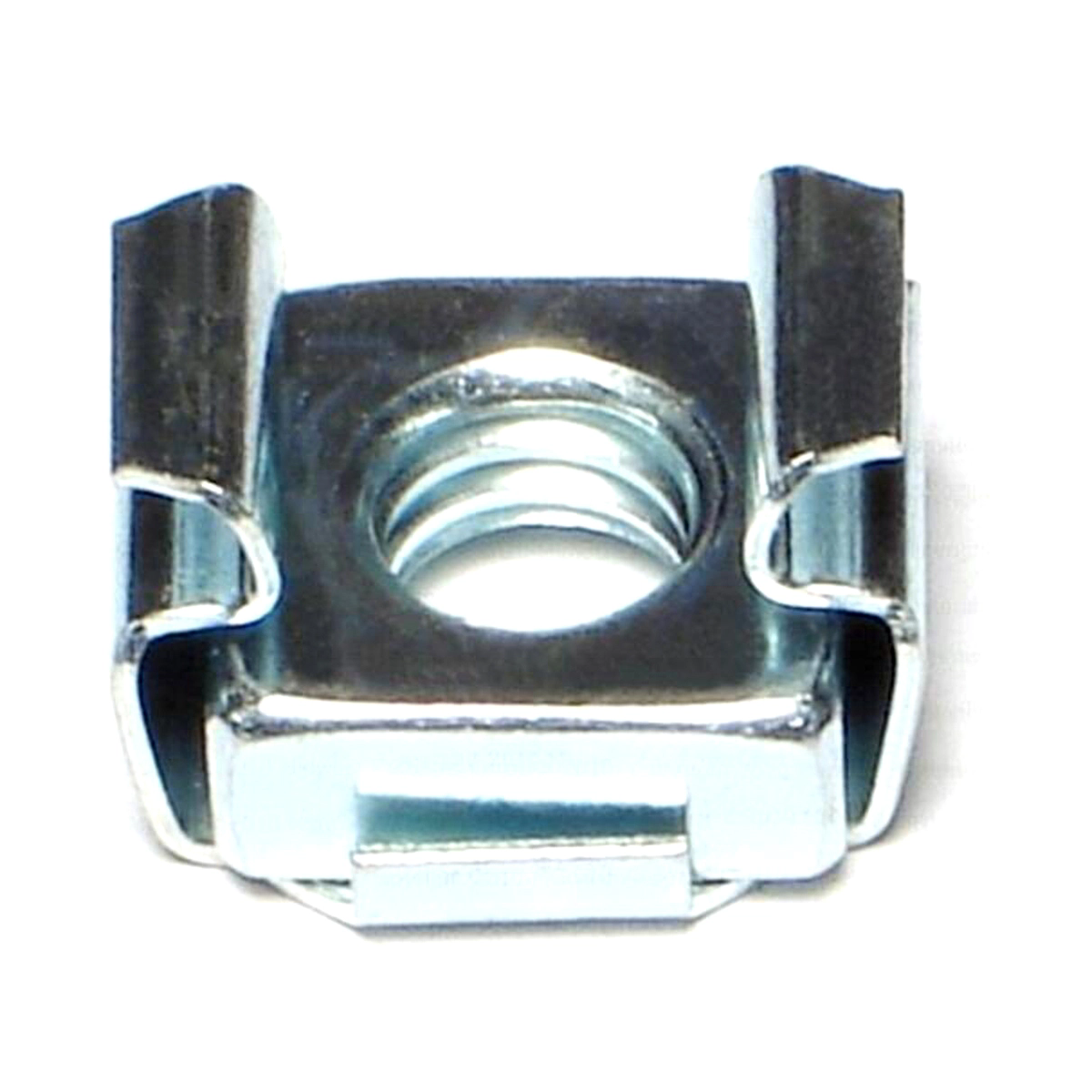

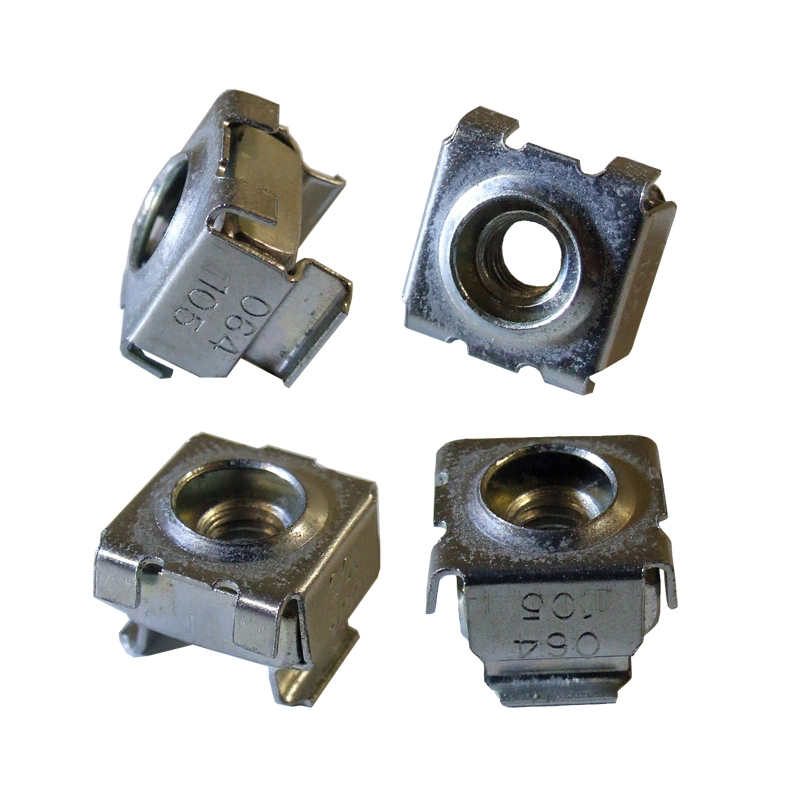

Zinc Plated Cage Nut
Details Information
Introduction
Cage nuts are made of spring steel and in which is a square nut made from either steel, galvanized or stainless steel. The combinations can be spring steel cage with steel nuts, stainless steel cage with steel nuts or stainless steel cage with steel nut.
Features
Easy installation, no special tools required
Ideal for blind location assembly
Excellent “pullout” resistance
Won’t turn when the bolt is tightened
Attaches components to panels with square holes
Serviceable – parts disassemble easily
Snaps into bolt receiving position at center panel
Vibration and rattle proof
Extra high torque & holding power
Applications
Server racks
Grill panels
Blind assemblies
Cabinet construction
Automotive
HVAC
Electrical equipment
Parameters
| Standard | DIN ISO GB |
| Diameter | M5, M6 |
| Material | Steel, Stainless steel, Alloy, Aluminium |
| Surface treatment | Plain, black oxide, zinc plated, etc. |
| Package | Plastic bag, Boxes and cartons, Pallets, Customized |
| Price terms | EXW, FOB, CIF, etc. |
| Payment terms | T/T, Paypal, L/C, Western union, etc. |
| Certifications | ISO 9001:2015 |
| Note | Free sample but freight cost is paid by customers(when sample is in stock); Sample fee(when samples need to be customized) |

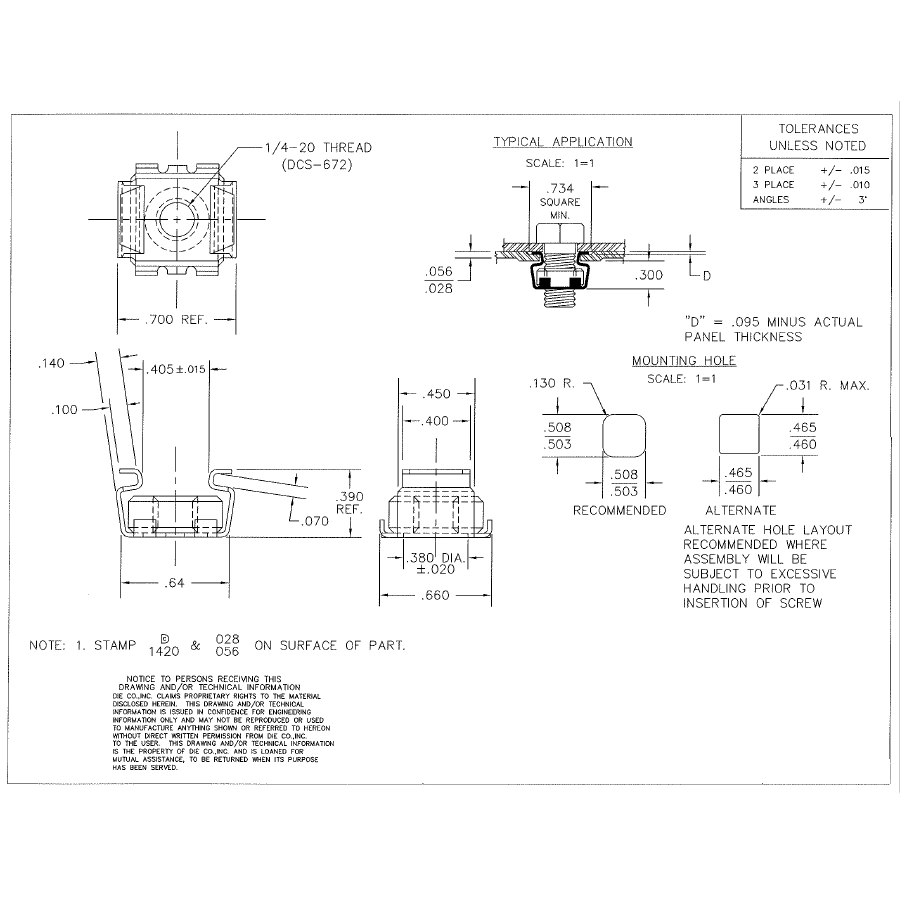

| Nominal Diameter | M5 | M6 | ||
| d | ||||
| S | 12 | 12 | ||
| h | 8 | 8 | ||
| a | 7.5 | 7.5 | ||
| n | 2/2.5/3/4 | 2/2.5/3 | ||
