Product Name
duplex wire rope clip
Details Information
Introduction

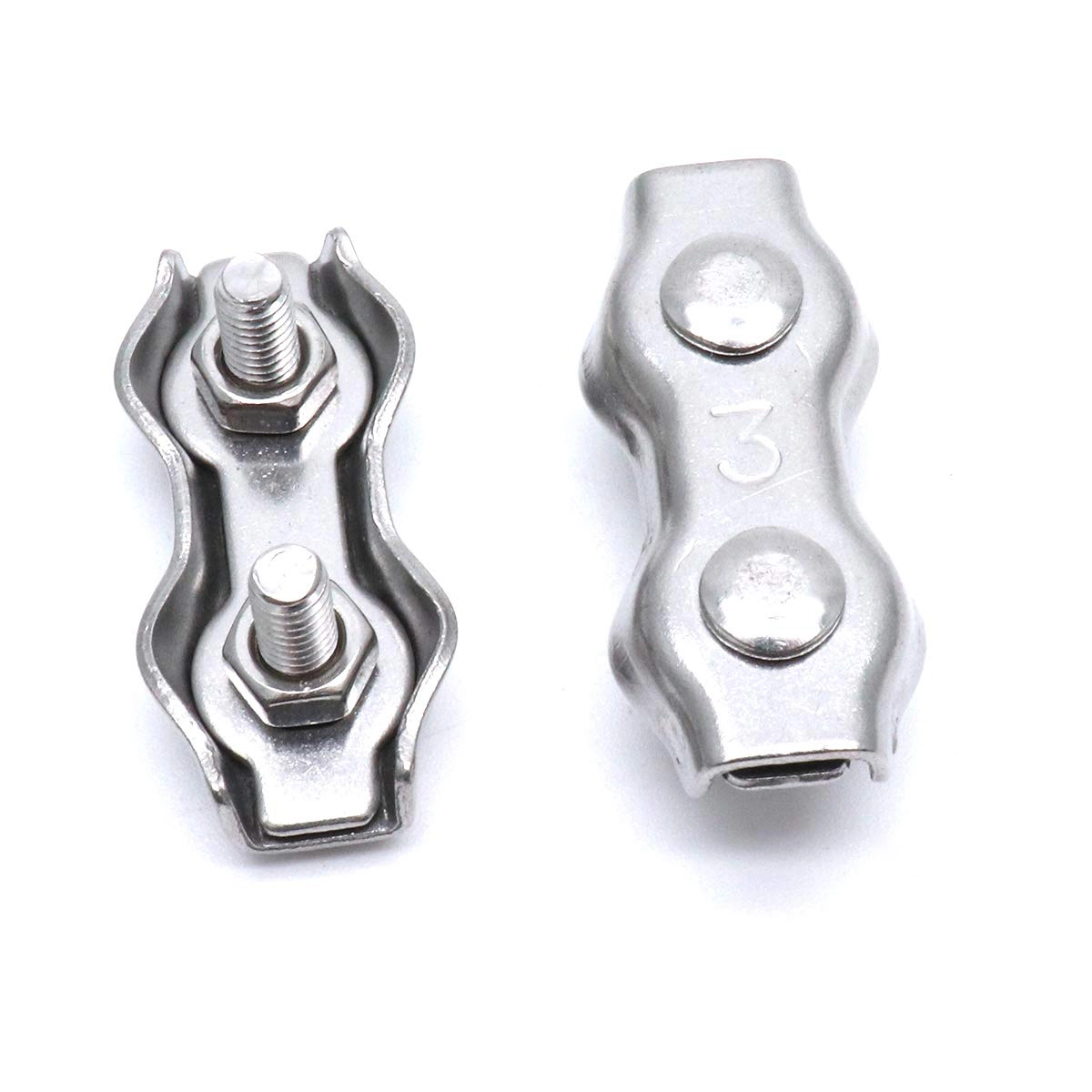

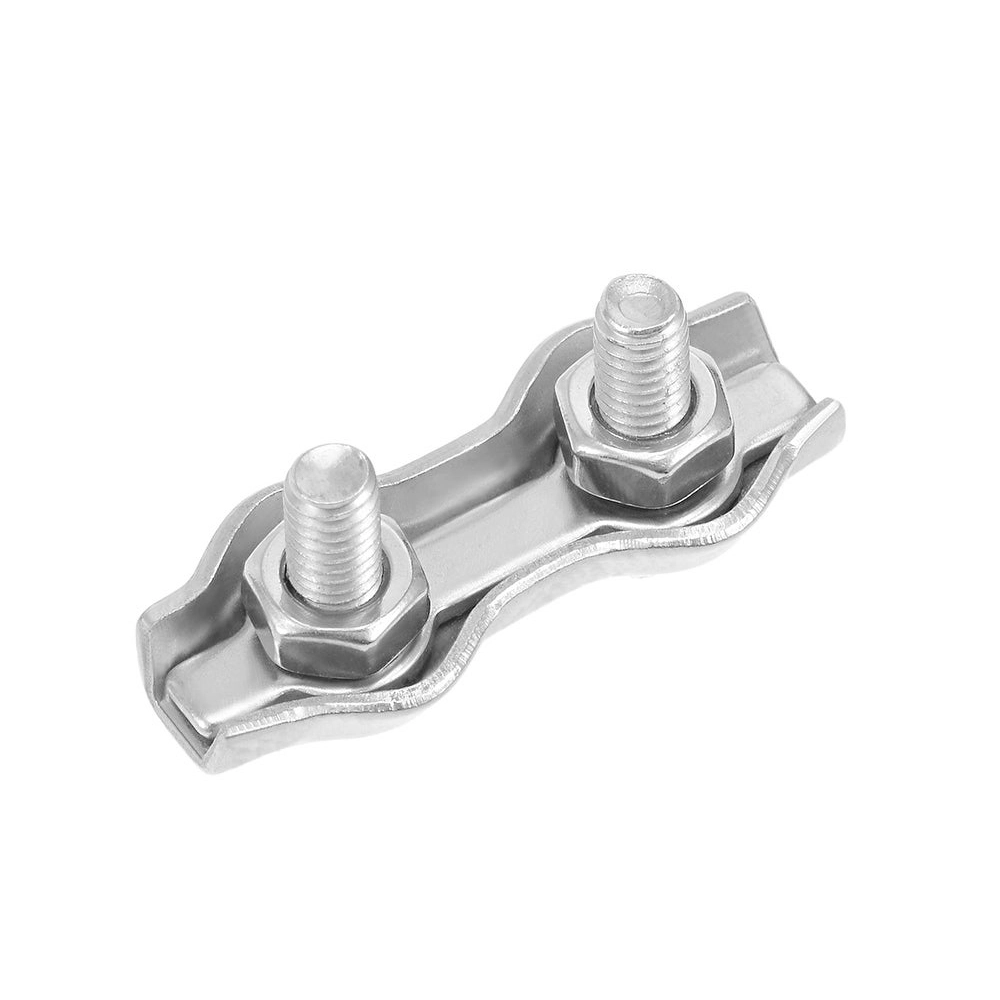

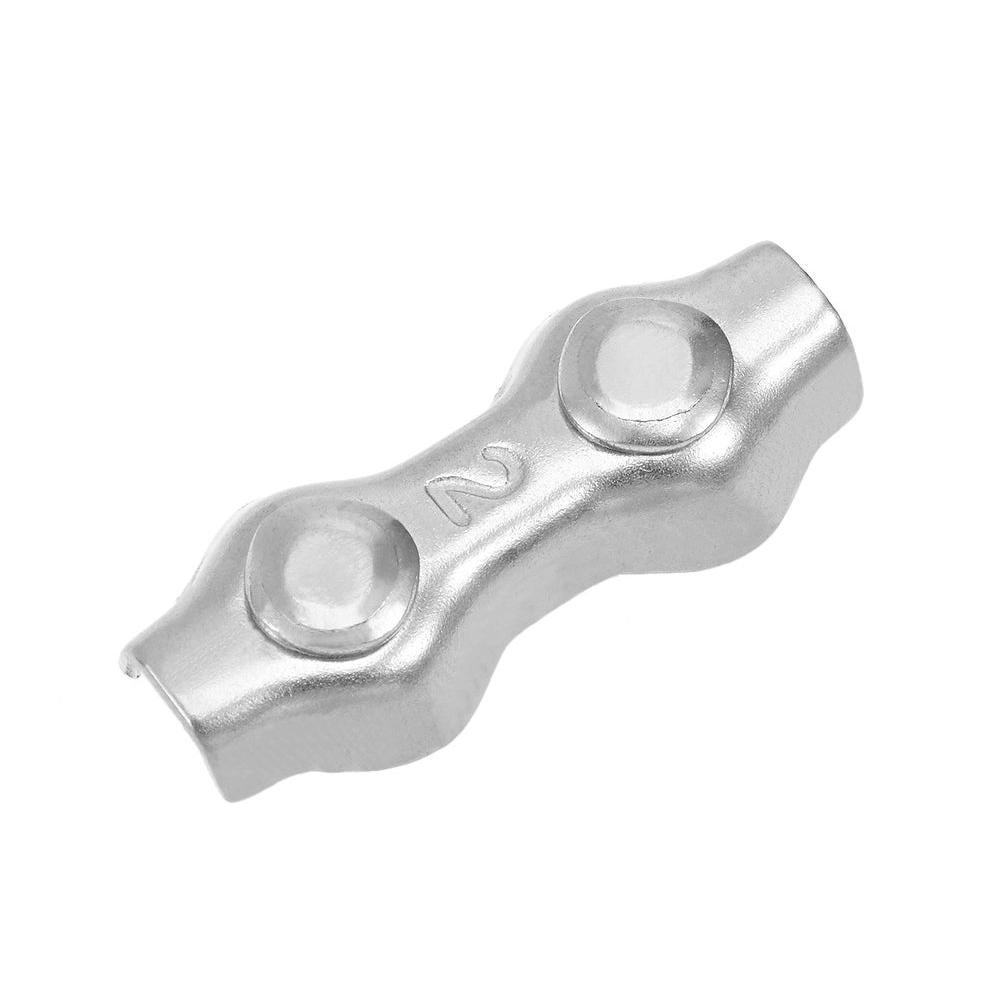

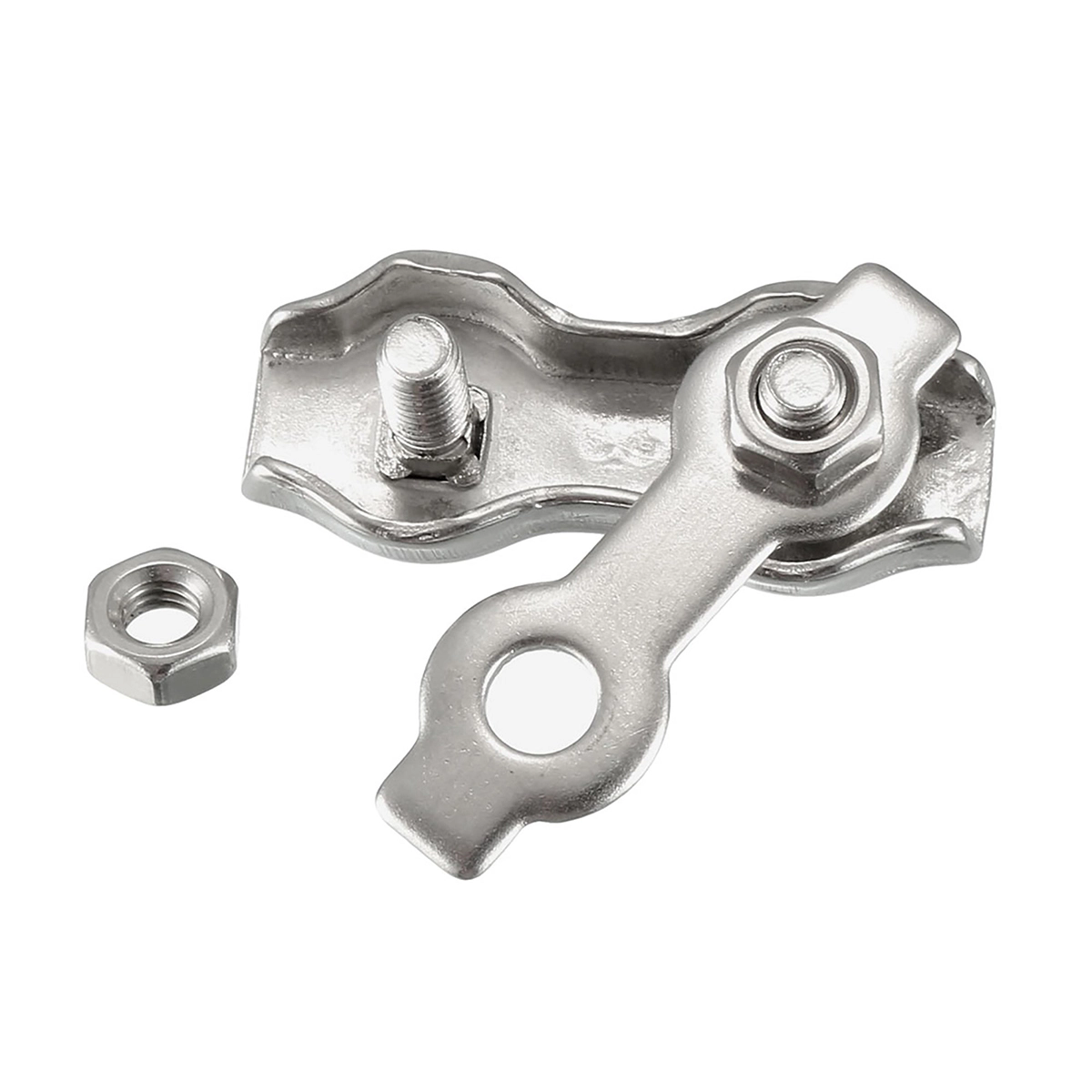

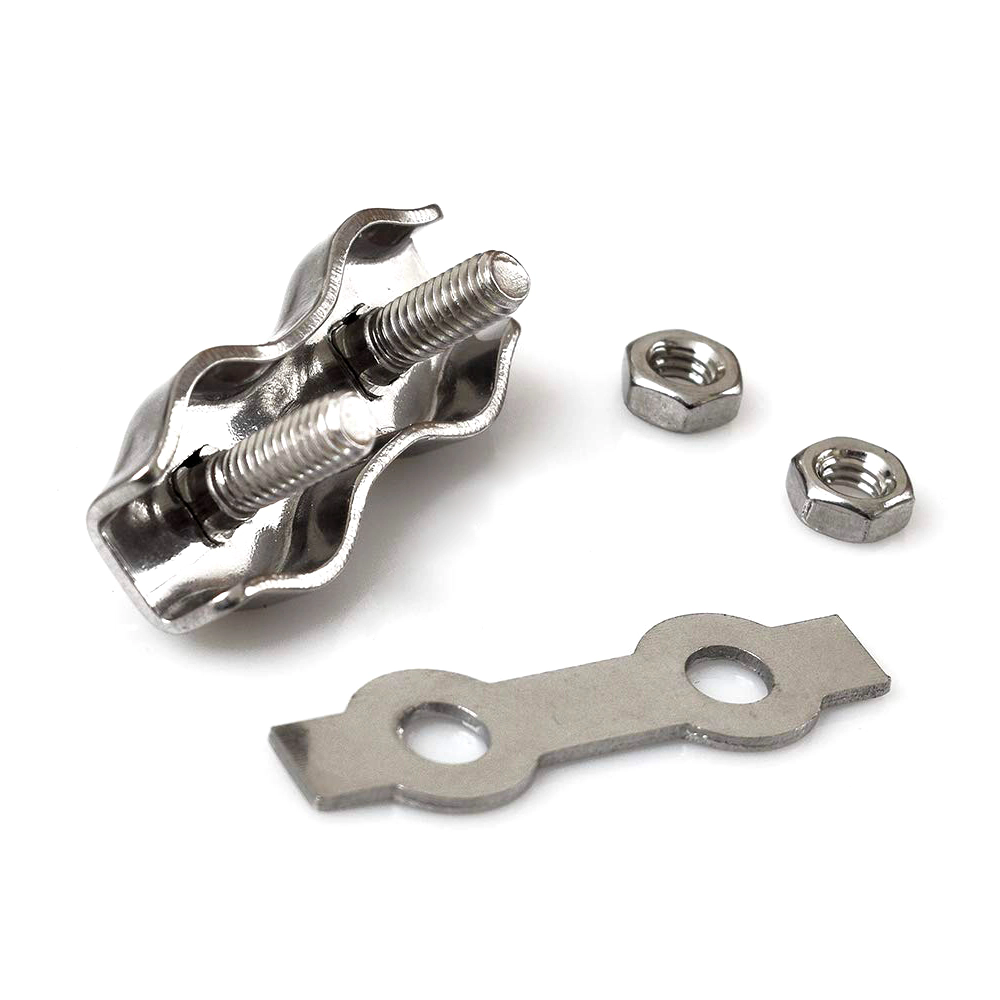

Duplex stainless wire rope clips easily create an eye or loop, for the use of the so-called card-snap method
Features
Material :Stainless Steel
Finish:Electro Galvanized, Dacromet,Color Painted ,Self colour
Technology:Drop forged,Polished,casting
Size: Different size available (From 2mm to 10mm)
Packing:Gunny bag or carton and pallet / by customer requirements.
Application:Suitable for industrial uses plus aviaries & pets, can also be used in making saddlery, bridles, harnesses & head collars.
Other:Special specifications and marks can be made according to customers requirements
Applications
The saddle shall be placed on the live end of the wire rope, with the U-bolt on the dead-end side,Use at least two or three wire rope clips to secure the ends properly to the length of the rope, and tighten nuts evenly one by one until reaching the recommended torque.
Parameters
| DUPLEX CLIP | |||||||||
| SIZE | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | Bolt (mm) | Package (Pcs/Bag) | Approx.Weight (Kg/1000Pcs) |
| 2mm | 30.00 | 12.00 | 7.00 | 1.00 | 5.00 | 15.00 | M4x13 | 100.00 | 8.50 |
| 3mm | 34.00 | 15.00 | 9.00 | 1.00 | 6.00 | 16.00 | M4x13 | 100.00 | 11.20 |
| 4mm | 40.00 | 19.00 | 12.00 | 1.50 | 6.00 | 20.00 | M5x17 | 100.00 | 20.20 |
| 5mm | 50.00 | 20.00 | 14.00 | 1.50 | 8.00 | 25.00 | M5x17 | 100.00 | 27.30 |
| 6mm | 60.00 | 25.00 | 17.00 | 2.00 | 9.50 | 30.00 | M6x22 | 50.00 | 51.20 |
| 8mm | 75.00 | 31.00 | 23.00 | 2.00 | 10.00 | 38.00 | M8x29 | 20.00 | 91.10 |
| 10mm | 96.00 | 38.00 | 27.00 | 2.50 | 14.00 | 48.00 | M10x31 | 20.00 | 180.20 |
