Product Name

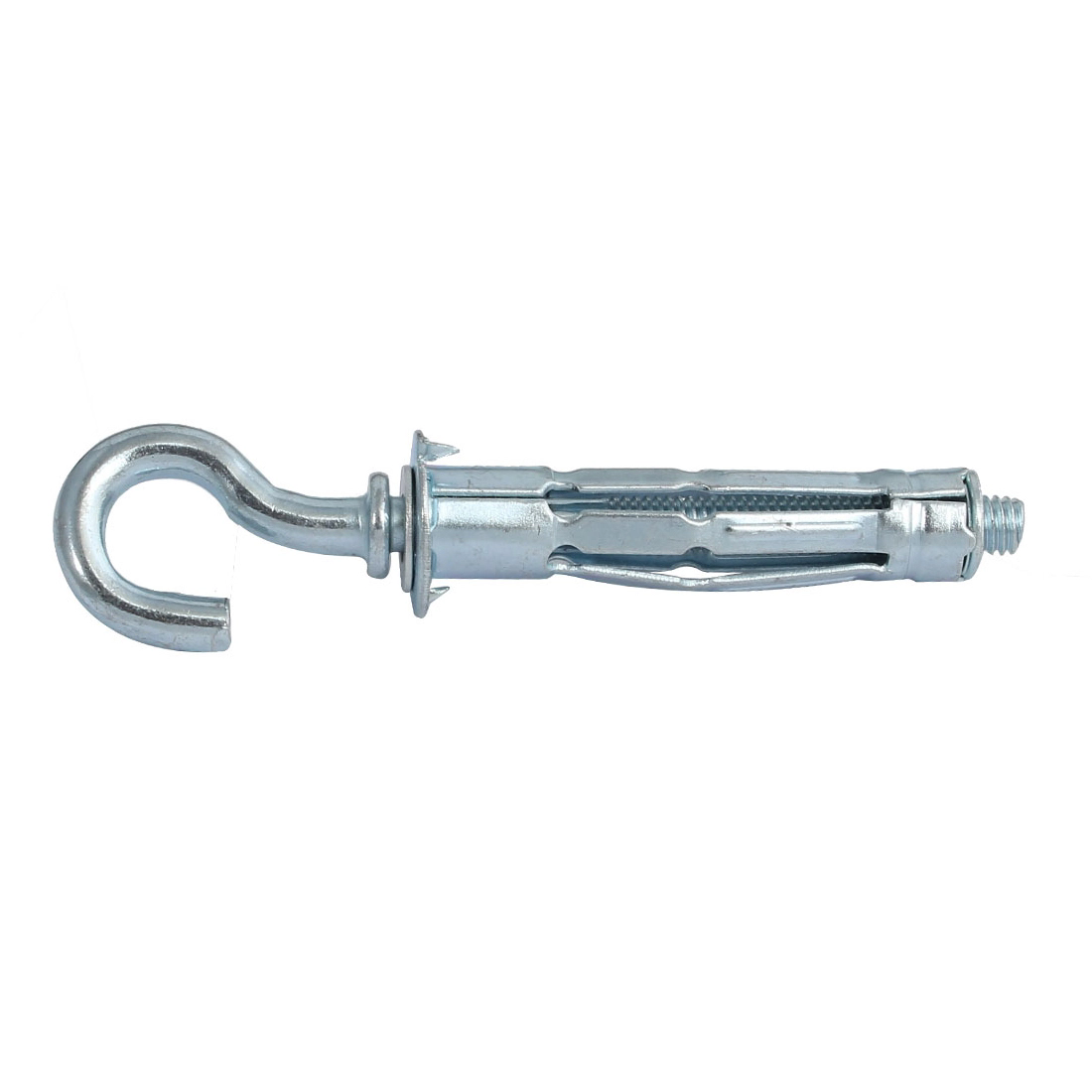

Hollow Wall Hook Anchor
Details Information
Introduction
Hollow wall anchors are specially used for light and medium loads, and hollow wall anchors also be installed in concrete, plywood, paneling, drywall materials.
Features

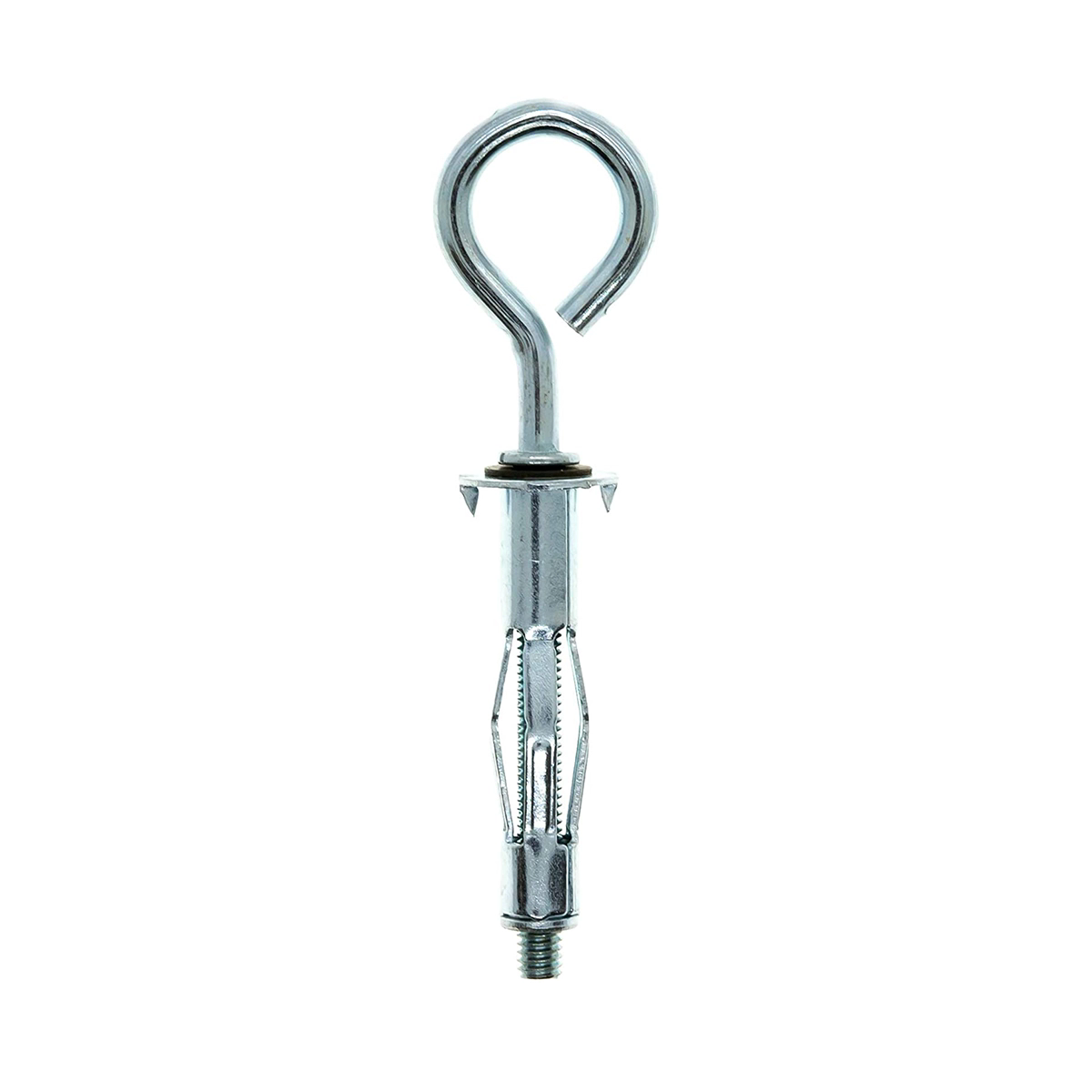

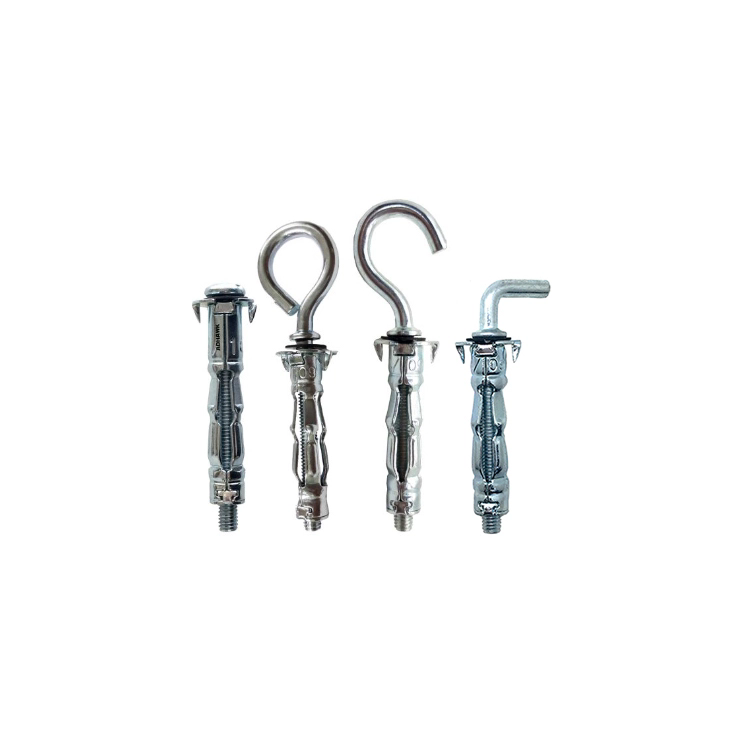

1. Different type of head: Closed eye, open eye, medium hook, and etc.
2. Hollow wall anchors securely fasten mirrors, pictures, cabinets, curtain-drapes-shelf brackets, bathroom fixtures to hollow walls of plaster over wood lath or metal lath, wallboard, gypsum or cinder block, hollow tile, and etc.
3. Fixtures can be removed or replaced for redecorating without disturbing the hollow wall anchors.
Applications
Plasterboard, Plywood, Chipboard, Calcium Silicate Board
Parameters
Material | CARBON STEEL |
Thread Type | Metric, American, Unified |
Surface treatment | Zinc Plated, Hot Dip Glavanized |
Appearance | C Hook, O Hook, with Plastic Ring |
Hollow Wall Anchor Size | Screw | Sleeve Body | Pcs/Ctn |
4X21 | M4X28L | Ø8X21L | 2500 |
4X33 | M4X41L | Ø8X33L | 2000 |
4X35 | M4X41L | Ø8X35L | 2000 |
4X39 | M4X47L | Ø8X39L | 1000 |
4X46 | M4X54L | Ø8X46.5L | 1000 |
4X46 | M4X54L | Ø8X46.5L | 1000 |
4X54 | M4X61L | Ø8X54L | 1000 |
4X60 | M4X67L | Ø8X60L | 1000 |
5X37 | M5X45L | Ø11X37.5L | 2000 |
5X53 | M5X60L | Ø11X53L | 1000 |
5X65 | M5X74L | Ø11X65L | 1000 |
5X81 | M5X89L | Ø11X81L | 1000 |
6X37 | M6X45L | Ø13X37L | 2000 |
6X53 | M6X60L | Ø13X53L | 1000 |
6X66 | M6X74L | Ø13X66L | 1000 |
6X80 | M6X88L | Ø13X80L | 800 |
Hollow Wall Anchor Size | Screw | Sleeve Body | Pcs/Ctn |
1/8XS | Ø8X21L | 1/8X28L | 2500 |
1/8S | Ø8X33L | 1/8X41L | 2000 |
1/8M | Ø8X39L | 1/8X47L | 1000 |
1/8SL | Ø8X46.5L | 1/8X54L | 1000 |
1/8L | Ø8X54L | 1/8X61L | 1000 |
1/8XL | Ø8X60L | 1/8X67L | 1000 |
3/16E | Ø11X37.5L | 3/16X45L | 2000 |
3/16S | Ø11X53L | 3/16X60L | 1000 |
3/16L | Ø11X65.5L | 3/16X74L | 1000 |
3/16XL | Ø11X81L | 3/16X89L | 1000 |
1/4E | Ø13X37L | 1/4X45L | 2000 |
1/4S | Ø13X53L | 1/4X60L | 1000 |
1/4L | Ø13X66L | 1/4X74L | 1000 |
1/4XL | Ø13X80L | 1/4X88L | 800 |
Hollow Wall Anchor Size | Screw | Sleeve Body |
1/8XS | Ø8X21L | 1/8X35L |
1/8S | Ø8X33L | 1/8X46L |
1/8M | Ø8X39L | 1/8X52L |
1/8SL | Ø8X46.5L | 1/8X59L |
1/8L | Ø8X46.5L | 1/8X59L |
