Product Name

Flat Head Phillips Sleeve Anchors

Details Information

Introduction

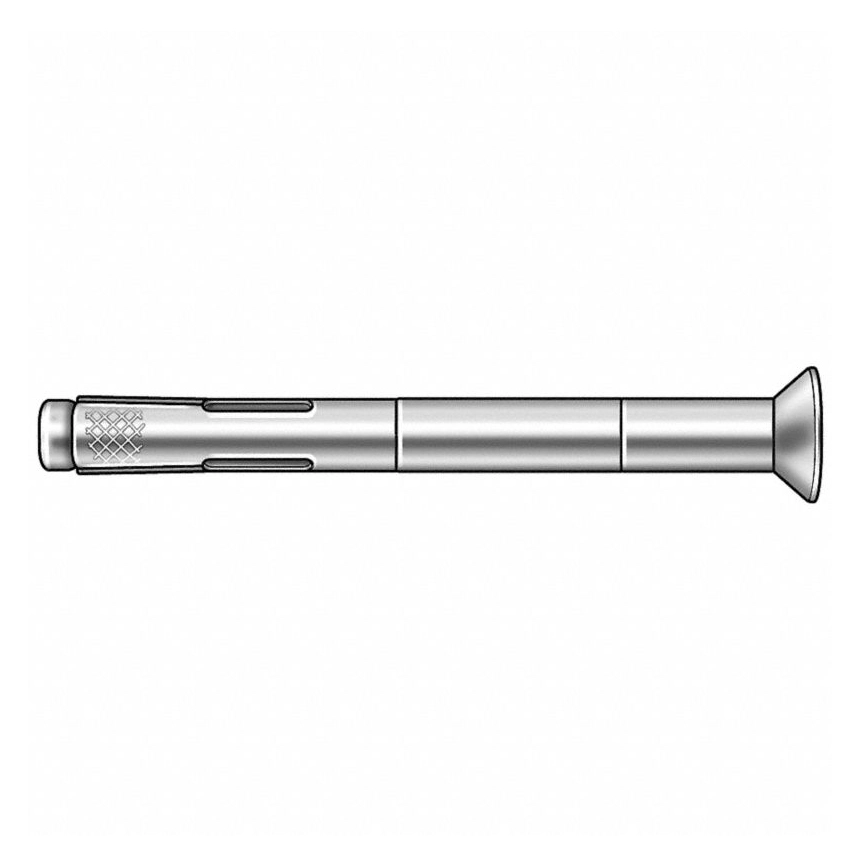

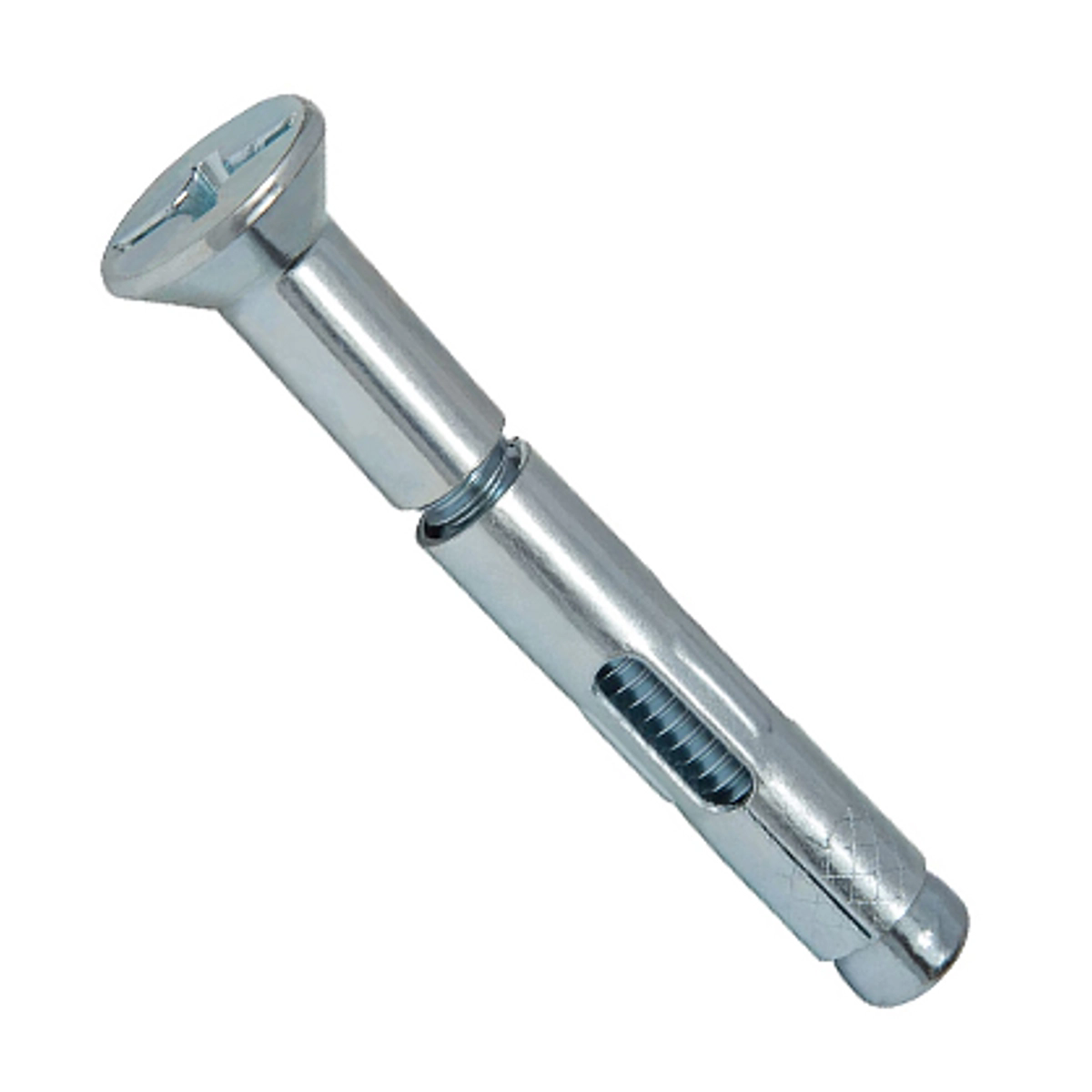

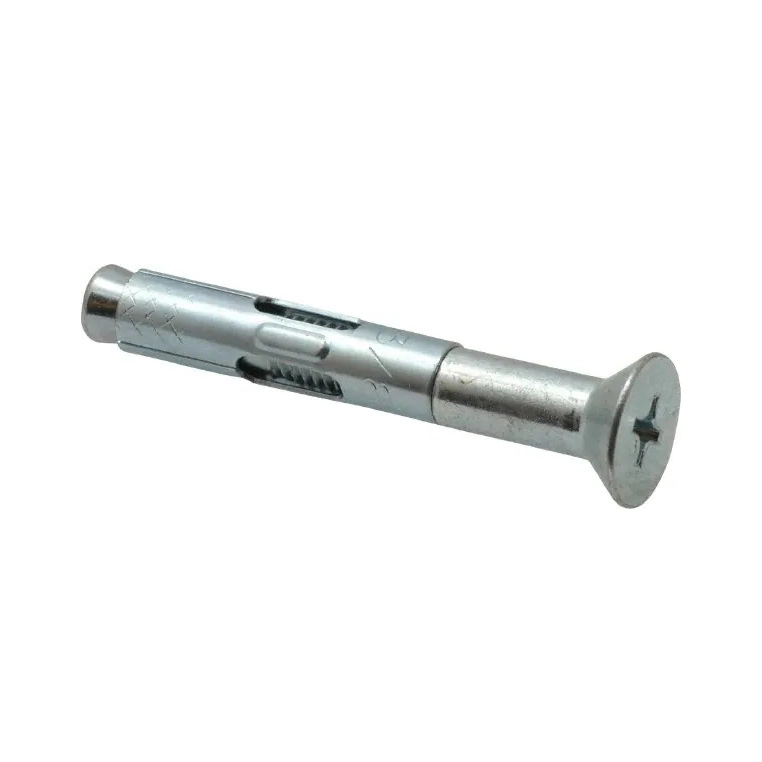

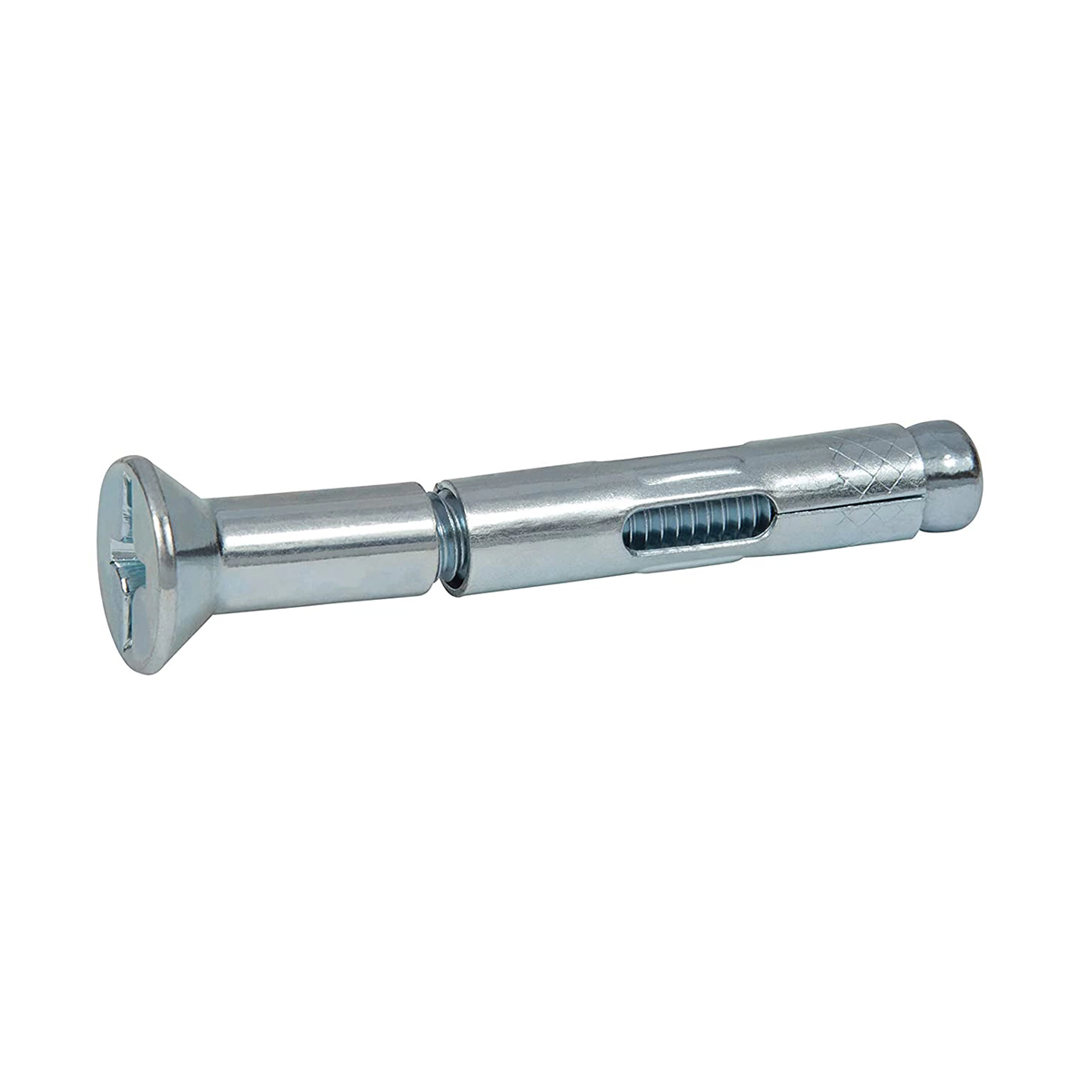

Flat-head sleeve anchors install into holes in mounting surfaces using an integrated expansion sleeve and expanding cone. They feed through a countersunk hole in the mounted item and are placed into holes in the mounting surface. Tightening the exposed screw head forces the sleeve over the expansion cone, securing the anchor.

 Features

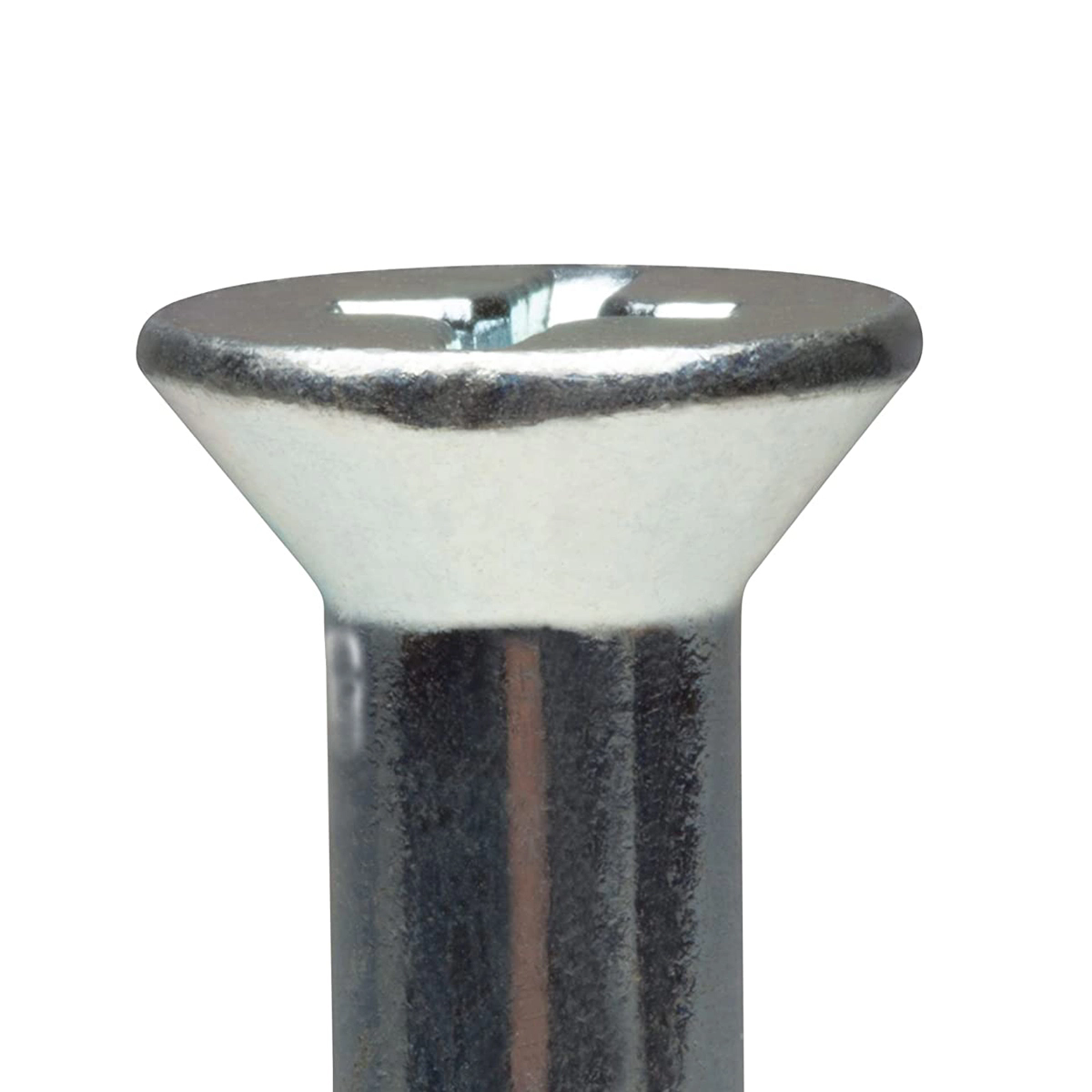

A device for giving stability to one part of a structure by making it fast to another consisting of a threaded stud with a conical end flared outward; a hollow, cylindrical dilating sleeve assembled over the stud and positioned against the minor diameter of the cone;  a countersunk flat headat the end opposite the cone.

 Applications

The anchor works by expanding against the material in which it is embedded. When the flat head is turned clockwise the conical end is pulled intothe dilating sleeve pushing it outward 360° around the anchor into the masonry. They are designed to be used in solid or hollow masonry, including cinder block, brick, marble and concrete. One advantage of the sleeve anchor is that it can be removed after it’s been installed. Another is that thelength of the sleeve induces less stress on the substrate than does a wedge anchor. It is well-suited for anchoring windows and doorframes
