Product Name

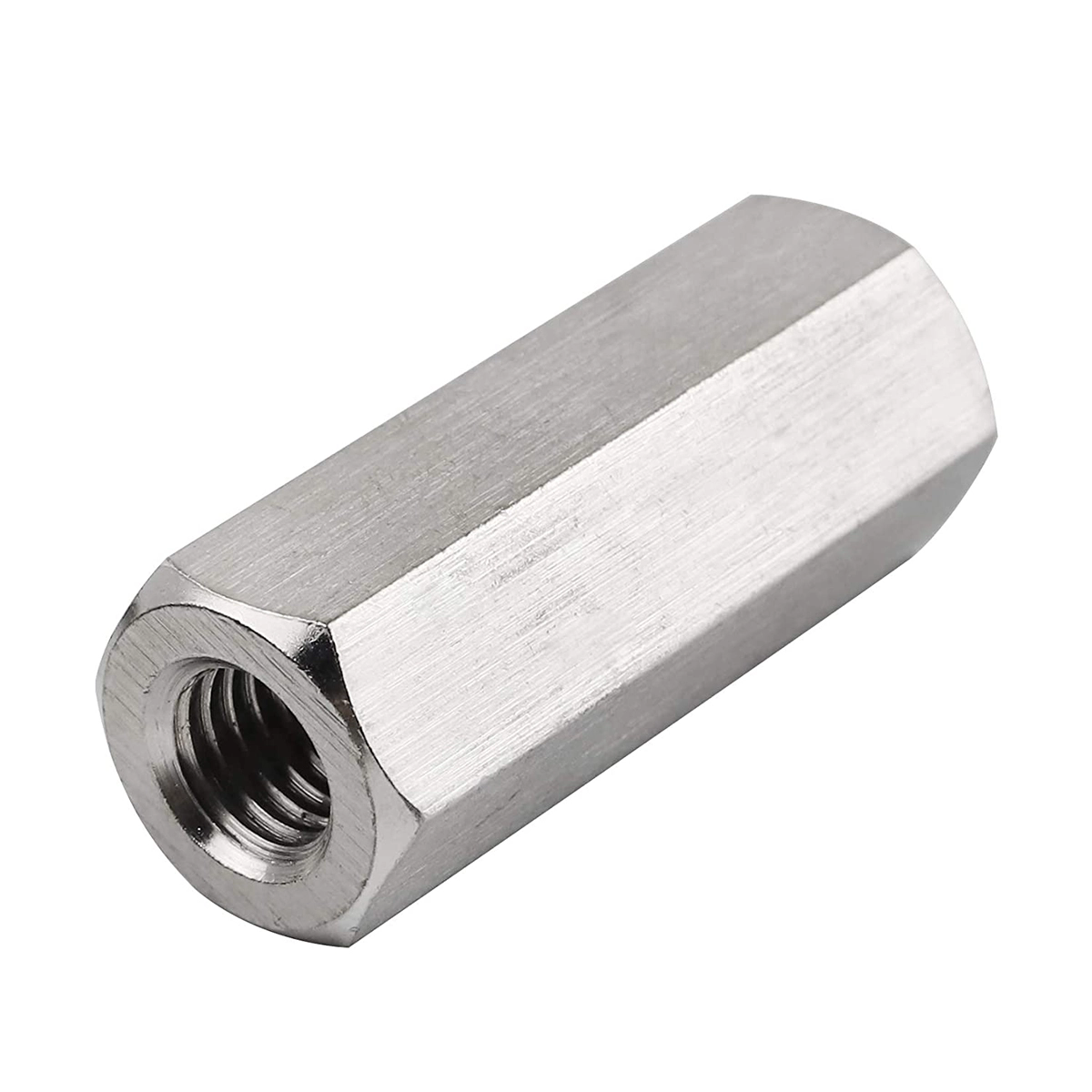

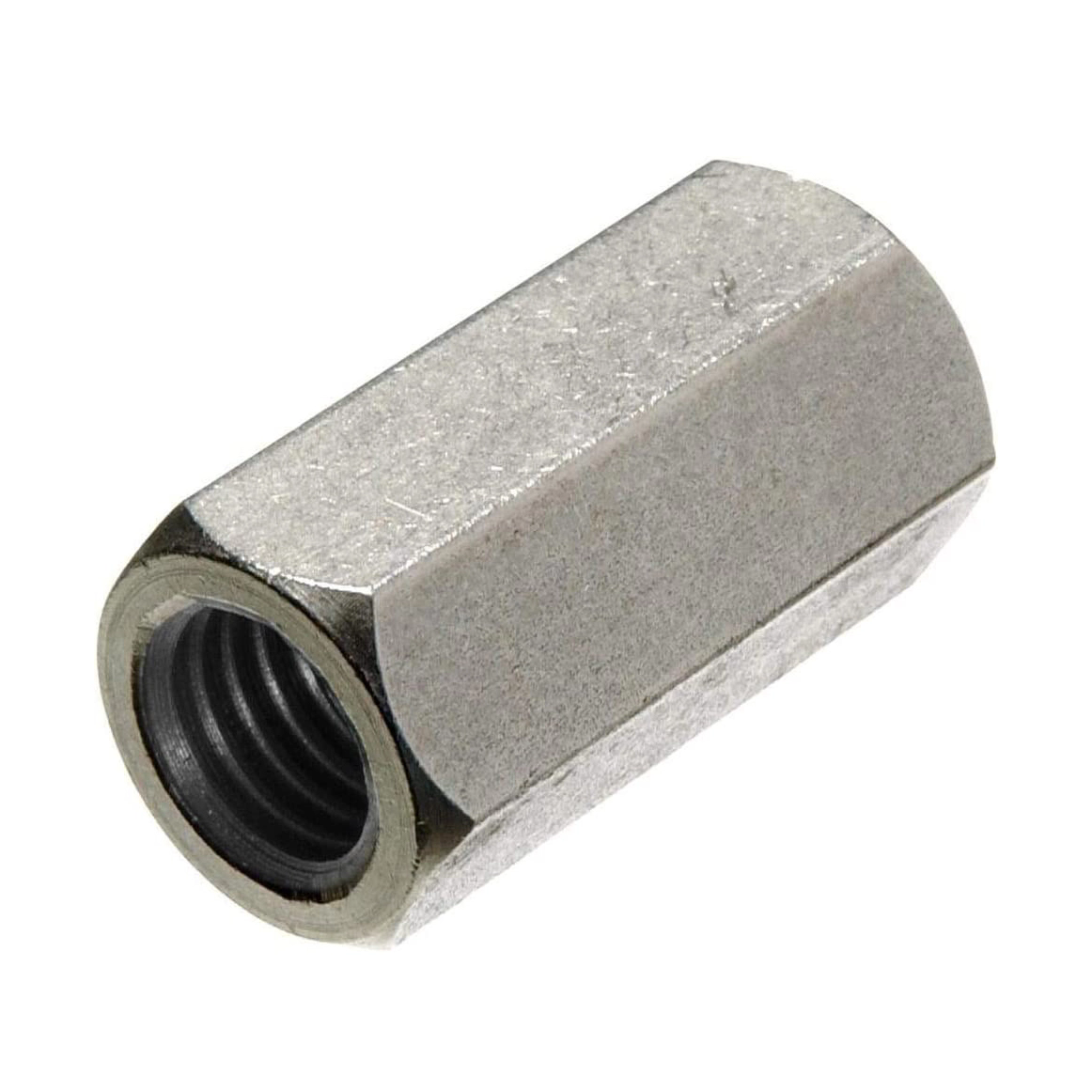

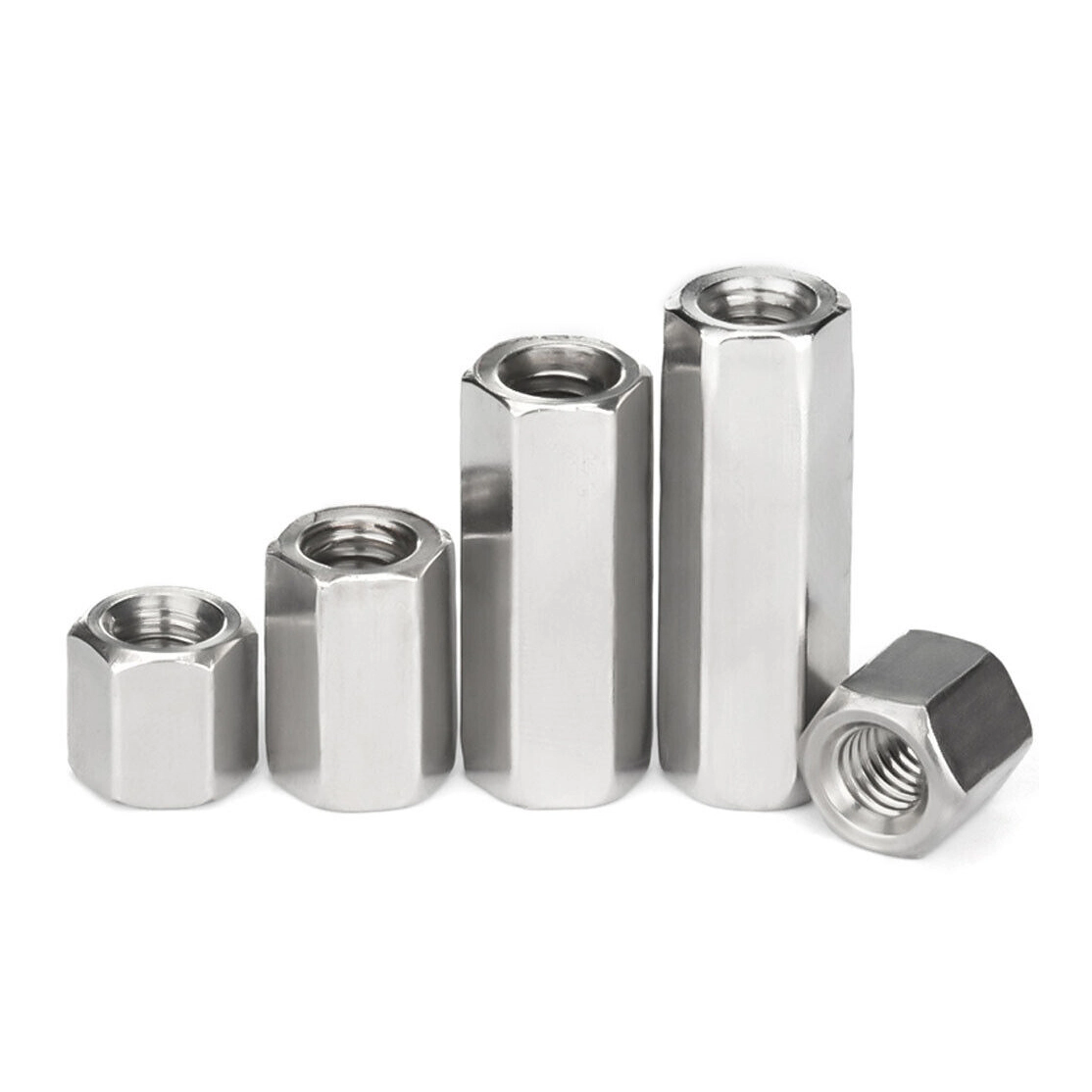

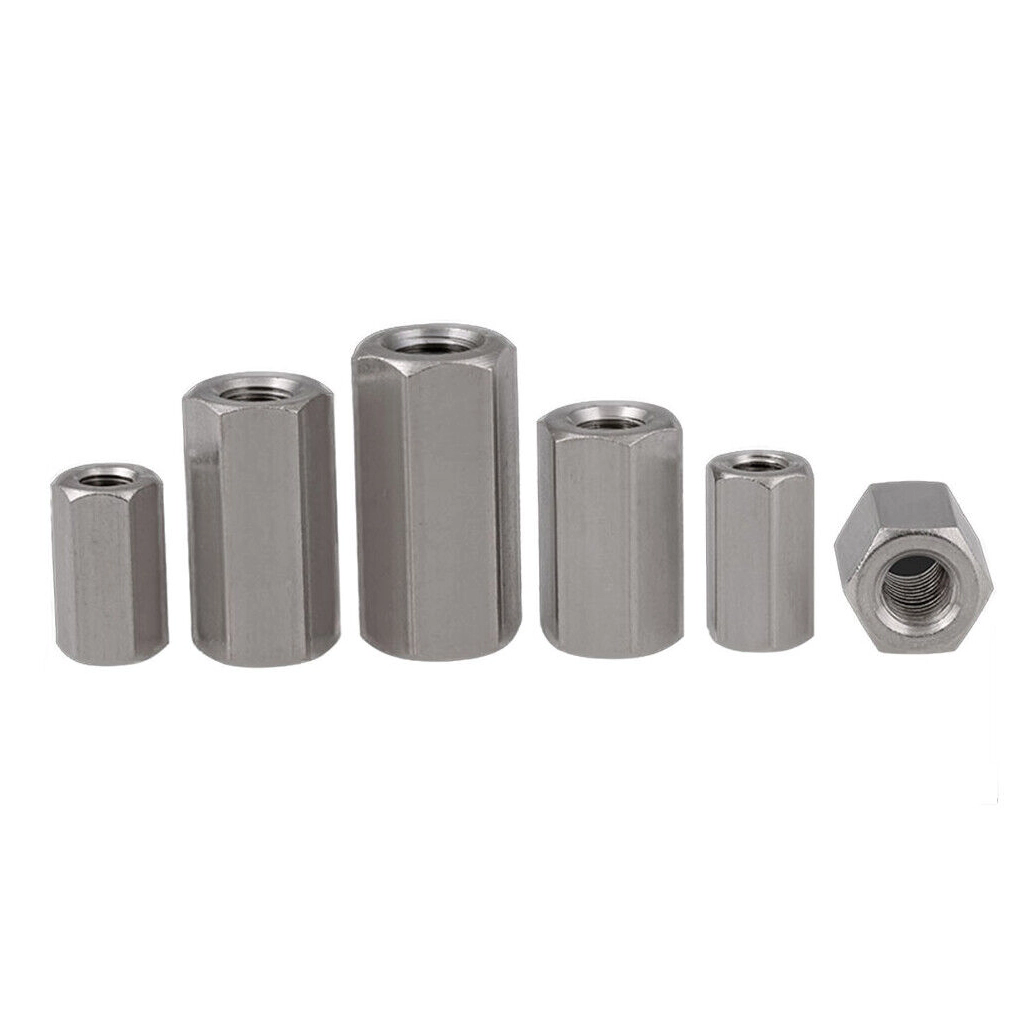

Hex Coupling Nut DIN 6334
Details Information
Introduction
Coupling fasteners will join together two externally threaded objects that measure at the same size and pitch. Joining two rods to extend their length as part of a construction project is a typical scenario for these fasteners, but you can connect different parts, as well.
Features
There is a small hole on the side of the nut to let you know the tightness of the screw coupling. The main purpose of the telescopic nut is to increase the size of the rod. It can tighten the connecting rod assembly by using industrial tools to provide inward pressure. The same procedure is used to loosen the component that is under external pressure.
Applications
Strong and are great for both indoor and outdoor use. Suitable for communication, office equipment, electronics and other industries.

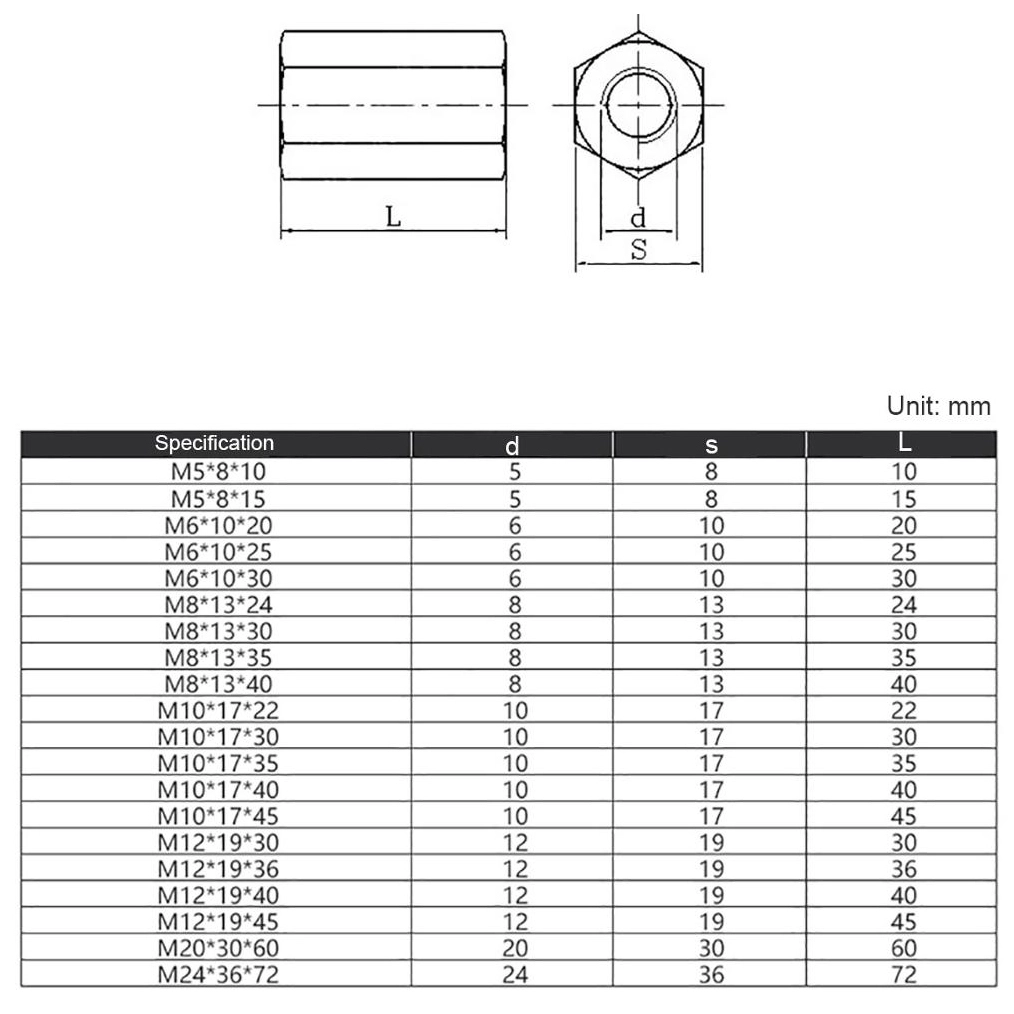

Parameters
Standard | DIN6334 |
Material | SS304, SS316 |
Diameter | M6~M36 |
Head shapes | Round |
Screw thread | Coarse thread |
Screw tip | Flat point |
Finish | A2-70/A2-80/A4-70/A4-80 |
Features | Good anti-corrosion ability |
Grade | A2, A4 |
Certification | ISO9001:2008, SGS, RoHS, Bureau Veritas |
OEM service is also available |
