Product Name
Coupling Nuts DIN6334
Details Information
Introduction
Coupler nut (also known as a rod coupling, rod coupling nut, coupling nut, or extension nut), is a threaded fastener for joining two male threads, most commonly threaded rods. The outside surface of the coupling nut is usually a hex shape to allow for wrench tightening. Reducing coupling nuts are a variant design that allows the joining of two rods of differing thread sizes.
Features
Precision Machining
Measure and process using precision machine tools and measuring tools under strictly controlled environmental conditions.
High-quality carbon steel
With long life, low heat generation, high hardness, high rigidity, low noise, high wear resistance and other characteristics.
Cost-effective
The use of high-quality carbon steel steel, after precision processing and forming, greatly improves the user experience.
Applications
Coupling nuts are often used for joining threaded rods or hanger bolts in a variety of applications that require extending threaded rod or attaching like items.

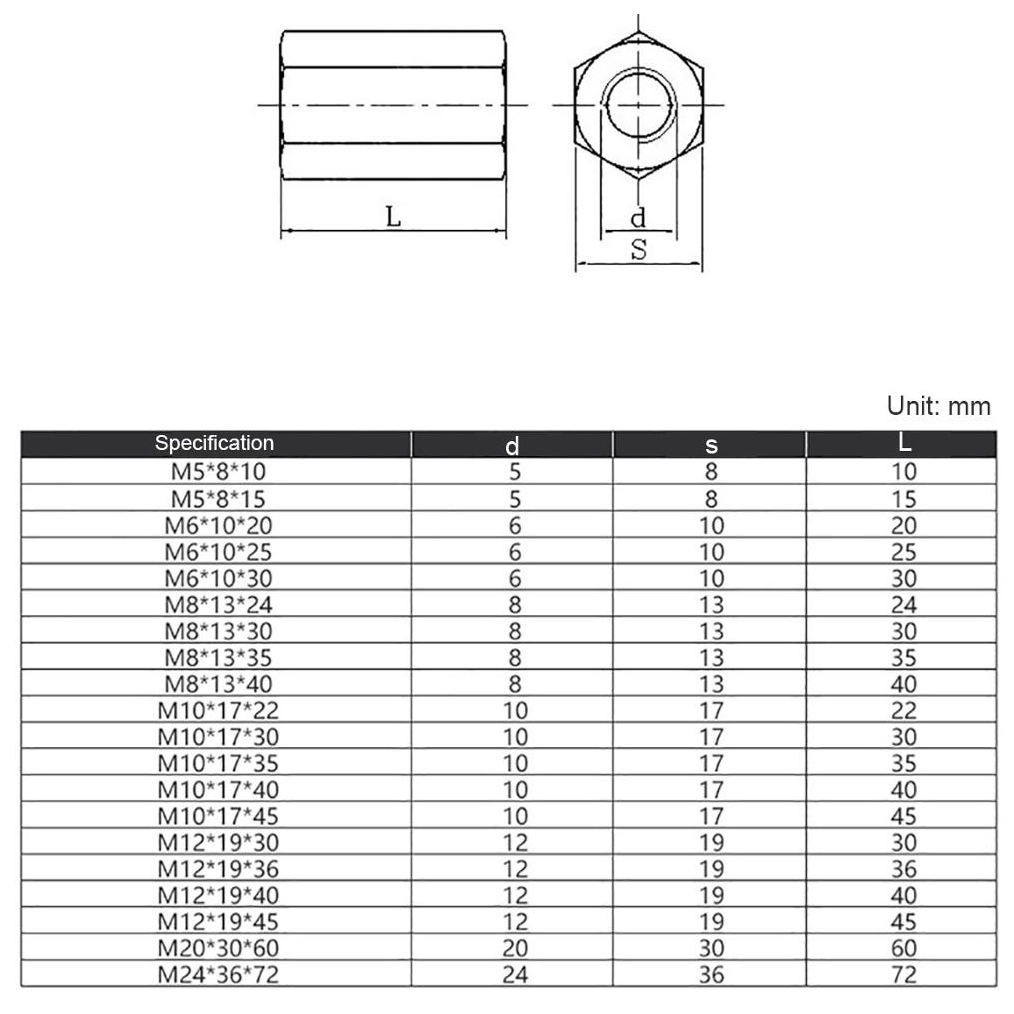

Parameters
| d | e | s | m |
|---|---|---|---|
| M8 | min 14.38 | 12.73 - 13.00 | 22.70 - 24.00 |
| M10 | min 18.90 | 16.73 - 17.00 | 28.40 - 30.00 |
| M12 | min 21.10 | 18.67 - 19.00 | 34.40 - 36.00 |
| M14 | min 24.49 | 21.67 - 22.00 | 40.40 - 42.00 |
| M16 | min 26.75 | 23.67 - 24.00 | 46.40 - 48.00 |
| M18 | min 29.56 | 26.67 - 27.00 | 52.10 - 56.00 |
| M20 | min 32.95 | 29.67 - 30.00 | 58.10 - 60.00 |
| M22 | min 35.03 | 31.61 - 32.00 | 64.10 - 66.00 |
| M24 | min 39.55 | 35.38 - 36.00 | 70.10 - 72.00 |
| M30 | min 50.85 | 45.38 - 46.00 | 88.10 - 90.00 |
| M36 | min 60.79 | 54.26 - 55.00 | 106.10 - 108.00 |
| M42 | min 71.30 | 64.26 - 65.00 | 124.10 - 126.00 |
| M48 | min 82.60 | 74.26 - 75.00 | 142.10 - 144.00 |
